308-07C Transfer Case - Vehicles With: 6-Speed Automatic Transmission - 6F35 2013 - 2014 MKZ
Installation Procedure revision date: 07/19/2013

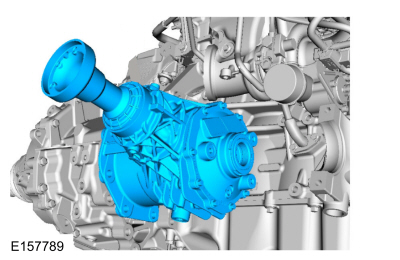

Transfer Case

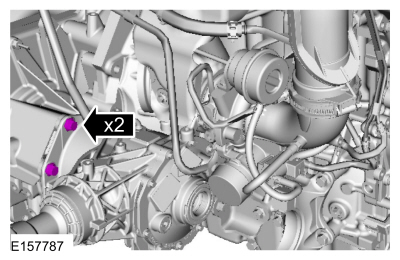

  1. Torque : 63 Nm

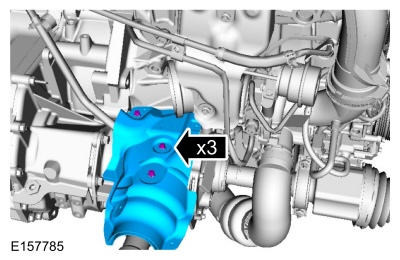

  1. Torque : 63 Nm

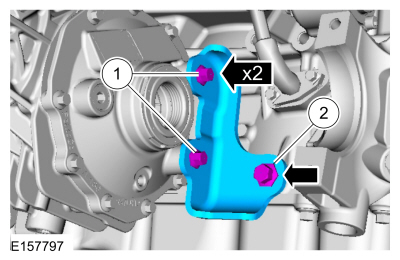

  1. Torque :
    1   25 Nm
    2   63 Nm
  1. Refer to: Front Halfshaft RH (205-04 Front Drive Halfshafts, Removal and Installation).
  1. Torque : 11 Nm
  1. Refer to: Catalytic Converter (309-00A Exhaust System - 2.0L EcoBoost (184kW/250PS) - MI4, Removal and Installation).
    Refer to: Catalytic Converter LH (309-00B Exhaust System - 3.7L Duratec (227kW/301PS), Removal and Installation).
    Refer to: Catalytic Converter RH (309-00B Exhaust System - 3.7L Duratec (227kW/301PS), Removal and Installation).
  1. Torque : 45 Nm
  1. Refer to: Rear Driveshaft - 2.0L EcoBoost (184kW/250PS) - MI4 (205-01 Driveshaft, Removal and Installation).
    Refer to: Rear Driveshaft - 3.7L Duratec (227kW/301PS) (205-01 Driveshaft, Removal and Installation).
