Rear Driveshaft - 2.0L EcoBoost (184kW/250PS) - MI4

Removal

1. Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).

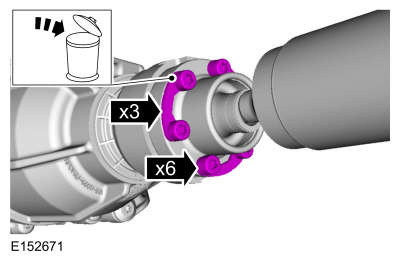

1. Torque : 35 Nm

1. NOTICE: Do not remove driveshaft from the PTU flange by pulling on the driveshaft tube. Damage to the CV-joint can result.

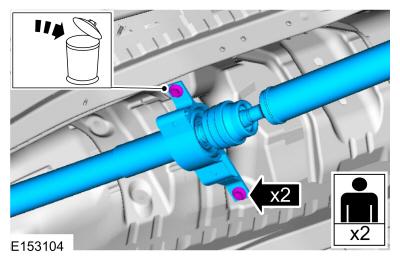

1. Torque : 35 Nm

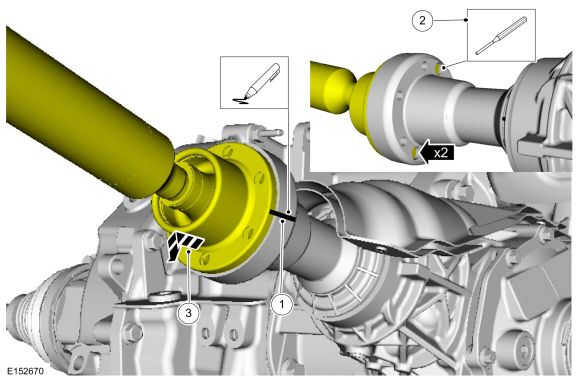

1. NOTICE: Do not remove driveshaft from the pinion flange by pulling on the driveshaft tube. Damage to the CV-joint can result.

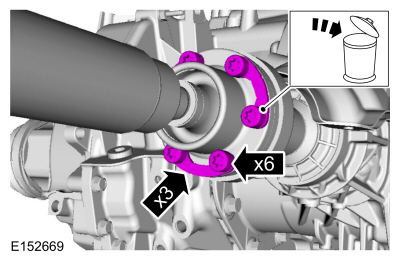

1. Torque : 55 Nm

Installation

1. NOTE: If a driveshaft is installed and driveshaft vibration is encountered after installation, index the driveshaft.

   To install, reverse the removal procedure.
