Rear Active Park Assist Sensors

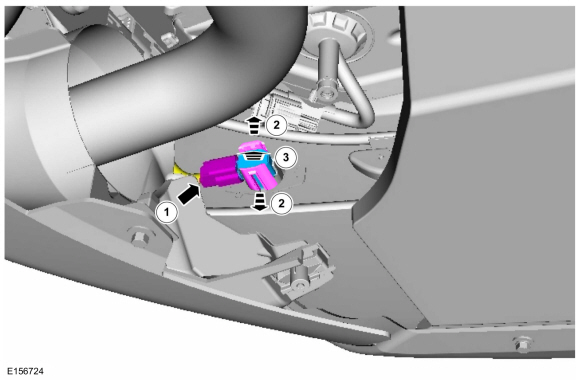

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

   Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).


1. Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).


Installation

1. To install, reverse the removal procedure.


1. Carry out the azimuth system check and the elevation system check.
   Refer to: Rear Active Park Assist Sensors (413-13C Parking Aid - Vehicles With: Active Park Assist, Removal and Installation).
   Refer to: Elevation System Check (413-13A Parking Aid, General Procedures).
