307-02B Transmission Cooling - Vehicles With: 6-Speed Automatic Transmission - 6F35 2013 - 2014 MKZ
Removal and Installation Procedure revision date: 06/5/2013

Transmission Fluid Cooler Tubes

Removal

  1. Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).
  1. Refer to: Air Cleaner (303-12D) .
    Refer to: Air Cleaner (303-12 Intake Air Distribution and Filtering - 1.6L EcoBoost (132kW/180PS) - Sigma) .
    Refer to: Air Cleaner (303-12B Intake Air Distribution and Filtering - 2.0L EcoBoost (184kW/250PS) - MI4, Removal and Installation).
    Refer to: Air Cleaner (303-12 Intake Air Distribution and Filtering - 2.5L Duratec (125kW/170PS)) .

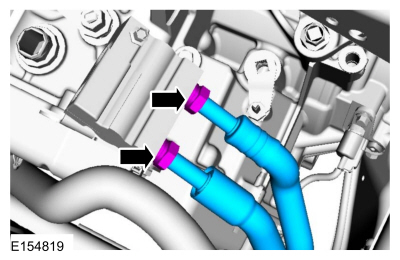

  1. Special Tool(s) : 307-569 Disconnect Tool TOC Line (1/2)

Installation

  1. Torque : 30 Nm

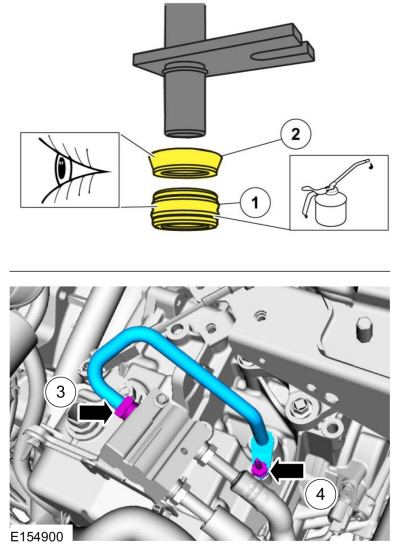

    1. Backing ring (7J324)
    1. Seal (7D258)
      Material : Motorcraft® MERCON® LV Automatic Transmission Fluid / XT-10-QLVC (WSS-M2C938-A) (MERCON® LV )

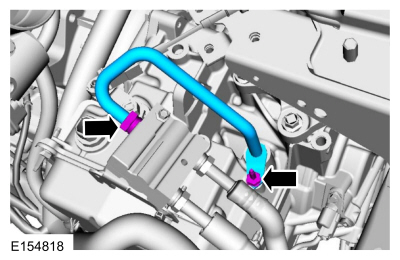

    1. Torque : 30 Nm

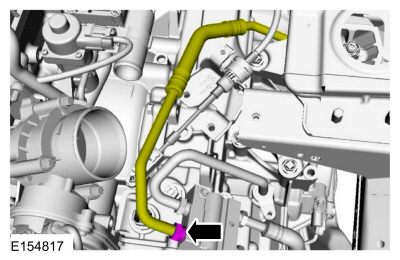

    1. Torque : 11 Nm

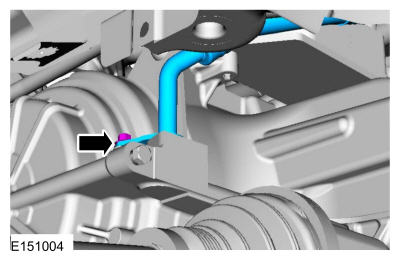

  1. Torque : 9 Nm

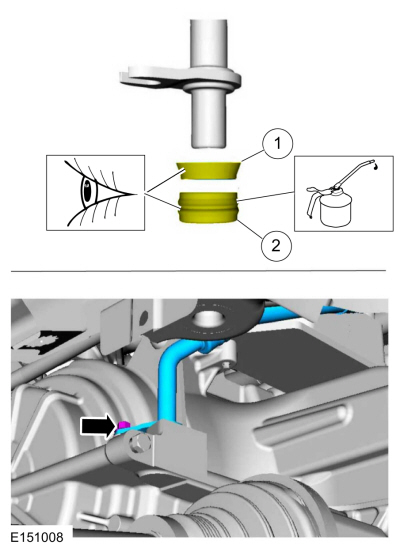

    1. Backing ring (7J324)
    1. Seal (7D258)
      Material : Motorcraft® MERCON® LV Automatic Transmission Fluid / XT-10-QLVC (WSS-M2C938-A) (MERCON® LV )

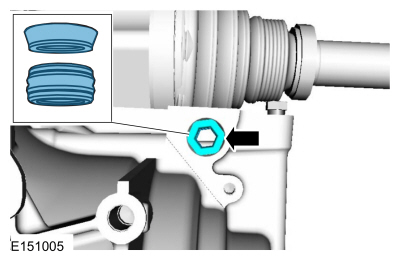

      Torque : 11 Nm
  1. Torque : 30 Nm
  1. Refer to: Air Cleaner (303-12D) .
    Refer to: Air Cleaner (303-12 Intake Air Distribution and Filtering - 1.6L EcoBoost (132kW/180PS) - Sigma) .
    Refer to: Air Cleaner (303-12B Intake Air Distribution and Filtering - 2.0L EcoBoost (184kW/250PS) - MI4, Removal and Installation).
    Refer to: Air Cleaner (303-12 Intake Air Distribution and Filtering - 2.5L Duratec (125kW/170PS)) .
  1. Refer to: Transmission Fluid Level Check (307-01B Automatic Transmission - Vehicles With: 6-Speed Automatic Transmission - 6F35, General Procedures).
