307-01B Automatic Transmission - Vehicles With: 6-Speed Automatic Transmission - 6F35 2013 - 2014 MKZ
General Procedures Procedure revision date: 07/15/2013

Transmission Fluid Level Check

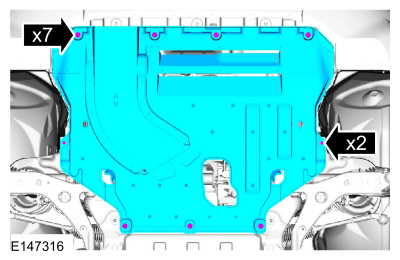

  1. Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).
  1. Start the engine and slowly select each gear position, stopping in each position and allowing the transmission to engage.

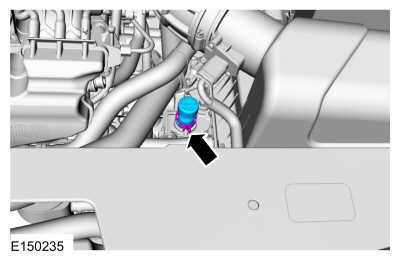

  1. With the engine running in PARK on a level hoist make sure the transmission is at normal operating temperature 85-93° C (185-200° F). Check the transmission fluid is even with the oil leveling plug hole.
  1. If the transmission fluid is not even with the oil leveling plug hole, add clean transmission fluid in increments of 0.25L (0.5 pt) until the transmission fluid is even with the oil leveling plug hole.
    Material : Motorcraft® MERCON® LV Automatic Transmission Fluid / XT-10-QLVC (WSS-M2C938-A) (MERCON® LV )
  1. Torque : 8 Nm
