307-02B Transmission Cooling - Vehicles With: 6-Speed Automatic Transmission - 6F35 2013 - 2014 MKZ
Removal and Installation Procedure revision date: 06/5/2013

Cooler Bypass Valve

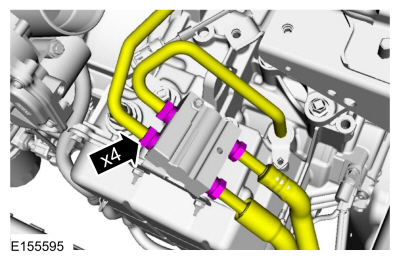

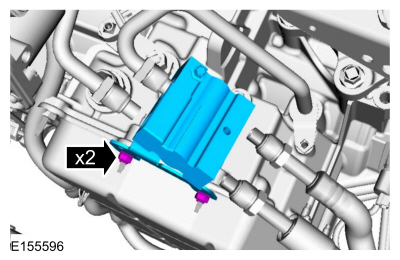

Removal

  1. Refer to: Air Cleaner (303-12 Intake Air Distribution and Filtering - 1.5L EcoBoost (118kW/160PS)) .
    Refer to: Air Cleaner (303-12 Intake Air Distribution and Filtering - 1.6L EcoBoost (132kW/180PS) - Sigma) .
    Refer to: Air Cleaner (303-12B Intake Air Distribution and Filtering - 2.0L EcoBoost (184kW/250PS) - MI4, Removal and Installation).
    Refer to: Air Cleaner (303-12 Intake Air Distribution and Filtering - 2.5L Duratec (125kW/170PS)) .

Installation

  1. Torque : 9 Nm
  1. Torque : 30 Nm
  1. Refer to: Air Cleaner (303-12 Intake Air Distribution and Filtering - 1.5L EcoBoost (118kW/160PS)) .
    Refer to: Air Cleaner (303-12 Intake Air Distribution and Filtering - 1.6L EcoBoost (132kW/180PS) - Sigma) .
    Refer to: Air Cleaner (303-12B Intake Air Distribution and Filtering - 2.0L EcoBoost (184kW/250PS) - MI4, Removal and Installation).
    Refer to: Air Cleaner (303-12 Intake Air Distribution and Filtering - 2.5L Duratec (125kW/170PS)) .
  1. Refer to: Transmission Fluid Level Check (307-01B Automatic Transmission - Vehicles With: 6-Speed Automatic Transmission - 6F35, General Procedures).
