308-07C Transfer Case - Vehicles With: 6-Speed Automatic Transmission - 6F35 2013 - 2014 MKZ
Removal and Installation Procedure revision date: 08/21/2012

Transfer Case Input Shaft Seal

Removal

  1. Refer to: Transfer Case (308-07C Transfer Case - Vehicles With: 6-Speed Automatic Transmission - 6F35, Removal).

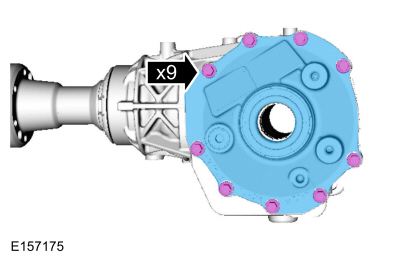

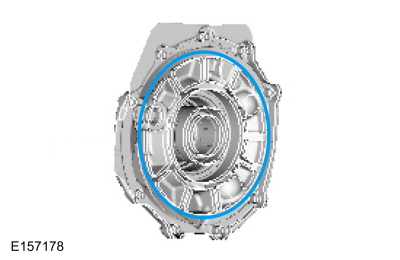

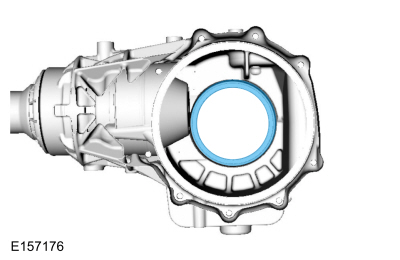

  1. Remove the input shaft assembly.

Installation

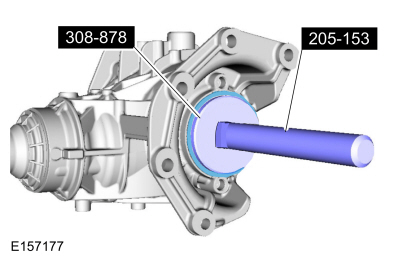

  1. Special Tool(s) : 308-878 Installer, Input Seal , 205-153 (T80T-4000-W) Handle
  1. Install the input shaft assembly.
  1. Torque : 10 Nm
  1. Refer to: Transfer Case (308-07C Transfer Case - Vehicles With: 6-Speed Automatic Transmission - 6F35, Installation).
