Driver Multi-Contour Seat Module [SCMG] - Vehicles With: Multi-Contour Seats

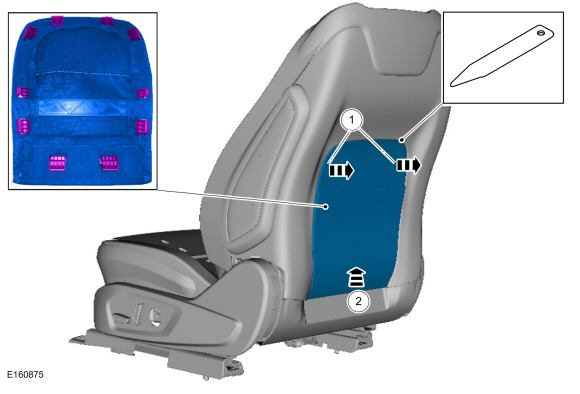

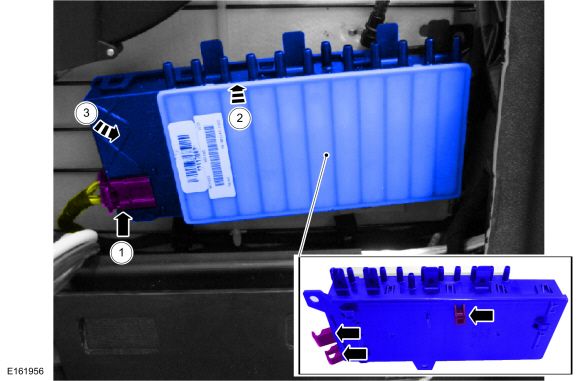

Removal

NOTE: Drivers seat shown, passenger seat similar.

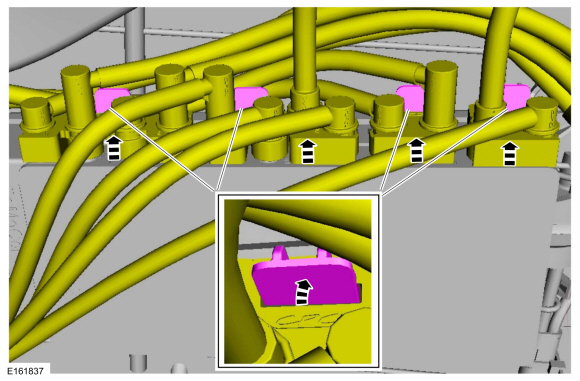

1. NOTE: Follow the color codes of the tubes and locks as indicated below. Tube colors noted are from left to right.

   • Orange lock: Black - transparent blue - blue - green.

   • Blue lock: Yellow - transparent green - transparent red - clear

   • Green lock: Transparent yellow - transparent magenta.

   • Yellow lock: Transparent orange - transparent red.


Installation

1. To install, reverse the removal procedure.


1. When installing a new SCMG or SCMH , PMI is required. Refer to the diagnostic scan tool instructions to carry out PMI .
