419-01B Passive Anti-Theft System (PATS) - Vehicles With: Push Button Start 2013 - 2014 MKZ
Removal and Installation Procedure revision date: 10/11/2012

Passive Anti-Theft System (PATS) Center Antenna

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

    Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).

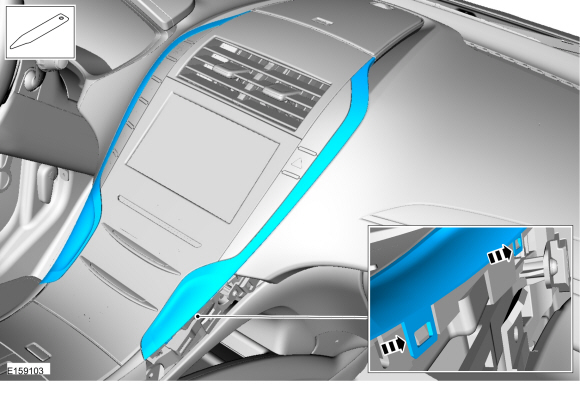

  1. NOTE: RH side shown, LH side similar.

    On both sides.

  1. NOTE: RH side shown, LH side similar.

    On both sides.

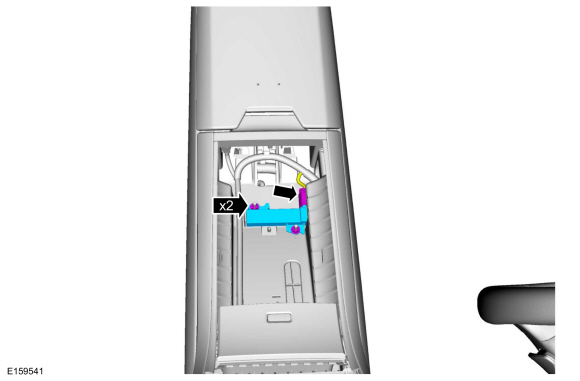

  1. NOTE: RH side shown, LH side similar.

    Torque : 2.5 Nm

Installation

  1. To install, reverse the removal procedure.
