Heated Steering Wheel Module (HSWM)

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. WARNING: Before beginning any service procedure in this section, REFER to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

   Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).


1. If a new HSWM is being installed, connect the scan tool and upload the module configuration information from the HSWM . For additional information on configuration,
   Refer to: Module Configuration - System Operation and Component Description (418-01 Module Configuration, Description and Operation).

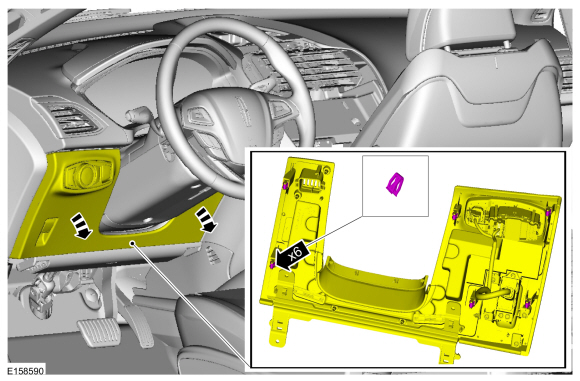

1. Refer to: Driver Knee Airbag (501-20B Supplemental Restraint System, Removal and Installation).

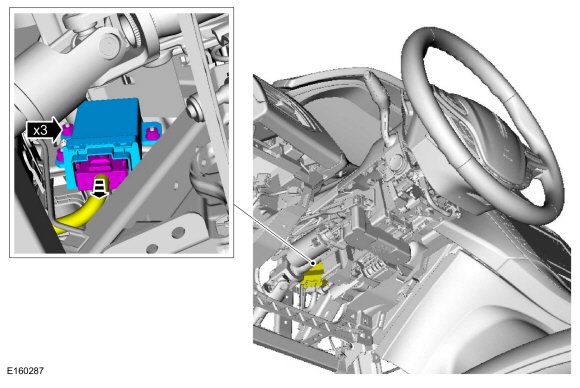

1. NOTE: Follow the unique instructions for this step in installation.

   Torque : 2.5 Nm

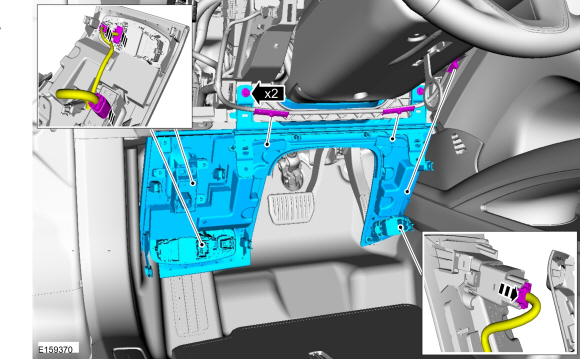

1. NOTE: Vehicles without power adjustable steering column shown, vehicles with power adjustable steering column similar.

1. Torque : 2.5 Nm

Installation

1. To install, reverse the removal procedure.


1. NOTE: Anytime the parking brake switch electrical connector has been disconnected, the EPB system is deactivated and a DTC is stored in the ABS module. Perform the following step to restore the EPB system and clear the ABS module DTC .

   Apply and release the parking brake twice, pausing with the switch in the NEUTRAL (AT REST) position between apply and release.


1. If a new HSWM was installed, it must be configured (using vehicle as-built data or module configuration information retrieved earlier in this procedure). For additional information on configuration,
   Refer to: Module Configuration - System Operation and Component Description (418-01 Module Configuration, Description and Operation).
