303-14A Electronic Engine Controls - 3.7L Duratec (227kW/301PS) 2013 - 2014 MKZ
Removal and Installation Procedure revision date: 06/20/2013

Catalyst Monitor Sensor RH

Removal

  1. Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).

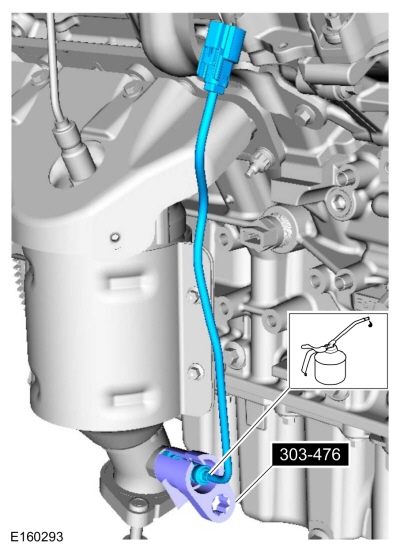

  1. Special Tool(s) : 303-476 (T94P-9472-A) Socket, Exhaust Gas Oxygen Sensor
    Material : Penetrating and Lock Lubricant / XL-1

Installation

  1. Calculate the correct torque wrench setting for the following torque. Refer to Torque Wrench Adapter Formula in the Apex.

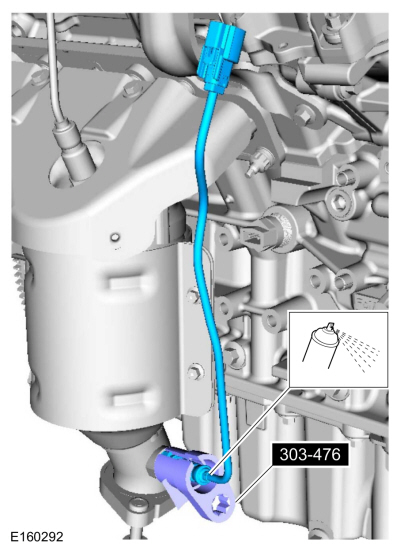

    Special Tool(s) : 303-476 (T94P-9472-A) Socket, Exhaust Gas Oxygen Sensor
    Material : High Temperature Nickel Anti-Seize Lubricant / XL-2
    Torque : 48 Nm
