501-10B Rear Seats 2013 - 2014 MKZ
Removal and Installation Procedure revision date: 05/3/2013

Rear Seat Backrest

Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: The 40 percent backrest must be removed to allow removal of the 60 percent backrest.

All backrests

  1. Refer to: Rear Seat Cushion (501-10B Rear Seats, Removal and Installation).

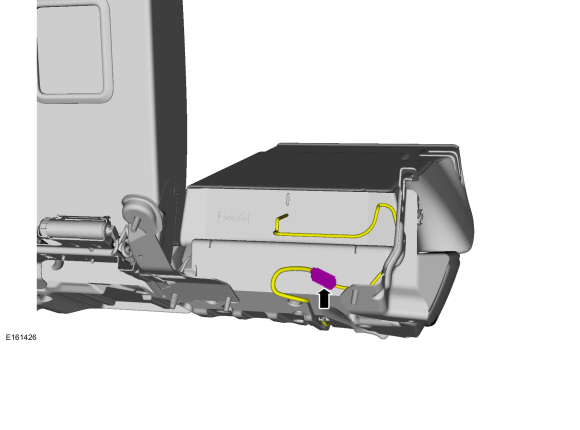

  1. If equipped with heated seats.

60 percent backrest

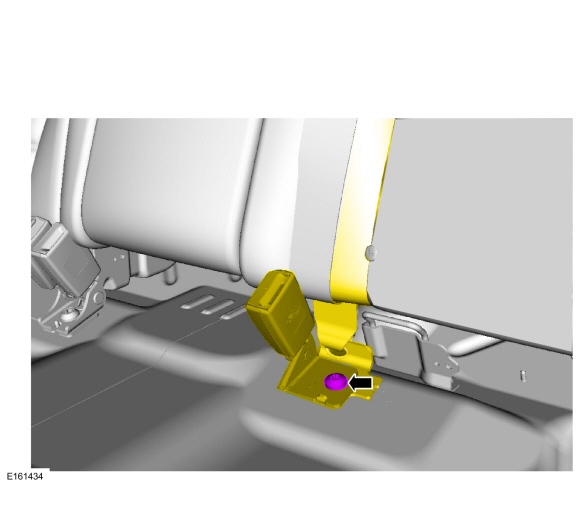

  1. If equipped with conventional safety belts.
    Torque : 48 Nm

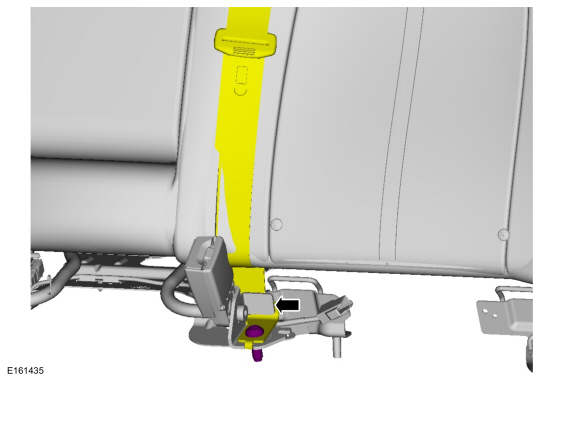

  1. If equipped with inflatable safety belts.
    Torque : 48 Nm

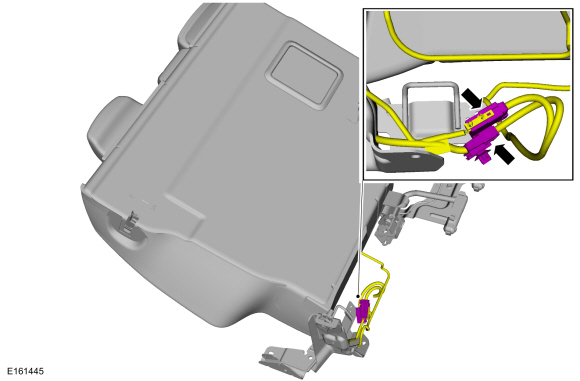

  1. If equipped with heated seats.

Installation

  1. To install, reverse the removal procedure.
