415-00B Information and Entertainment System - General Information - Vehicles With: THX Audio System 2013 - 2014 MKZ
Removal and Installation Procedure revision date: 11/20/2012

Satellite Radio Antenna

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

    Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).

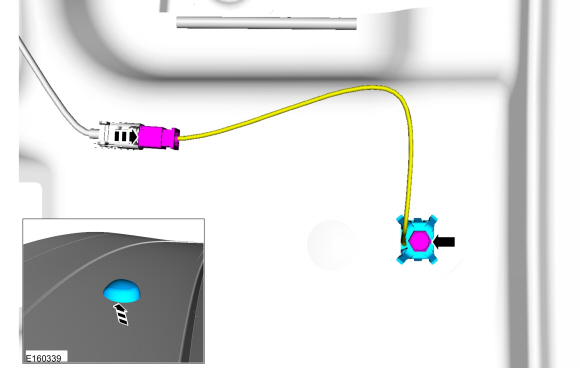

  1. Torque : 7 Nm

Installation

  1. NOTE: If installing a new satellite radio antenna it is not necessary to remove the bolt from the satellite radio antenna base.

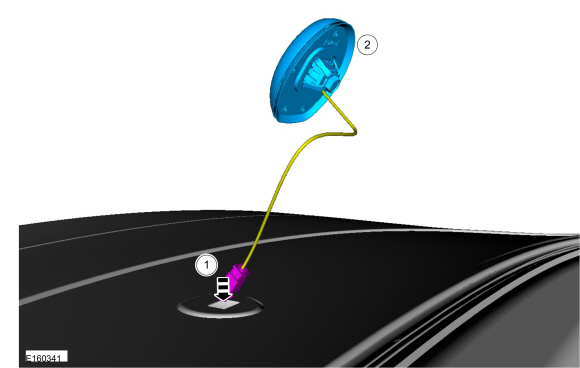

    1. Install harness through the opening.
    1. Install base until seated.
