501-10A Front Seats 2013 - 2014 MKZ
Removal and Installation Procedure revision date: 07/18/2013

Front Seat Power Lumbar Assembly - Vehicles With: Multi-Contour Seats

Removal

  1. Refer to: Front Seat (501-10A Front Seats, Removal and Installation).
  1. Refer to: Front Head Restraint Guide Sleeve (501-10A Front Seats, Removal and Installation).
  1. Refer to: Driver Multi-Contour Seat Module [SCMG] - Vehicles With: Multi-Contour Seats (501-10A Front Seats, Removal and Installation).
  1. Refer to: Side Airbag (501-20B Supplemental Restraint System, Removal and Installation).

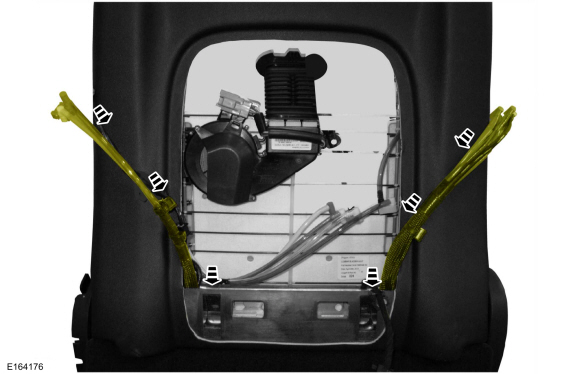

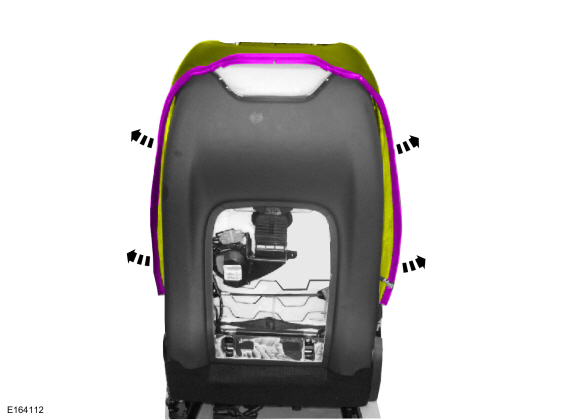

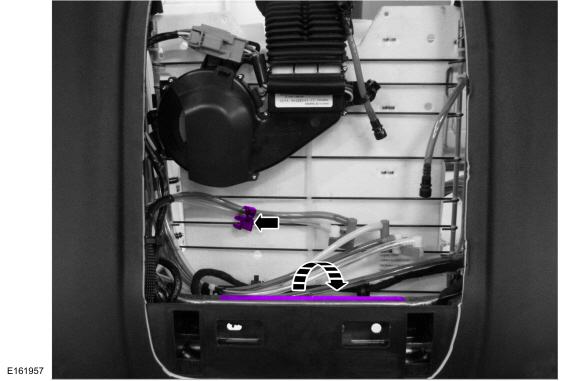

    1. NOTE: During installation attach the tube to the front seat backrest blower motor as shown.

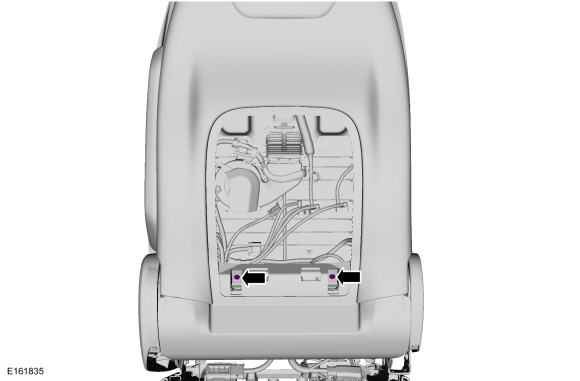

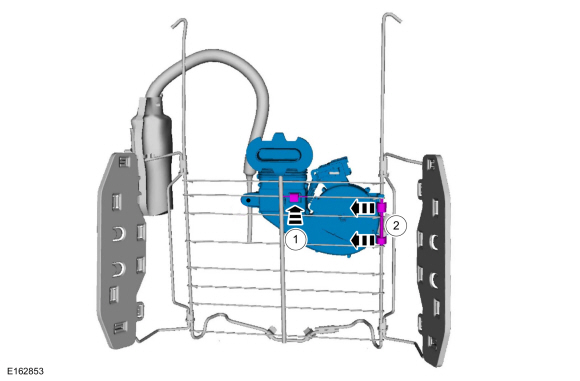

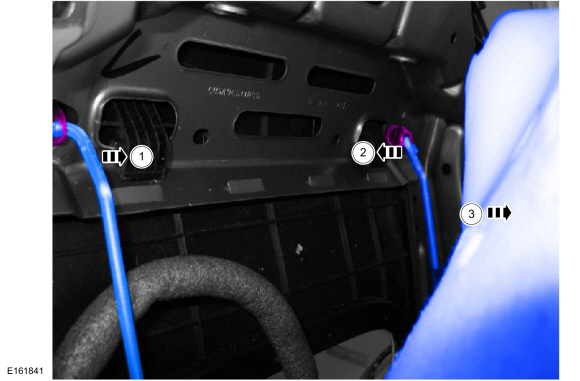

  1. NOTE: The lumbar portion of the assembly is not present to show the backrest blower motor attachments.

Installation

  1. To install, reverse the removal procedure.


Copyright © Ford Motor Company
