303-03A Engine Cooling - 3.7L Duratec (227kW/301PS) 2013 - 2014 MKZ
Removal and Installation Procedure revision date: 11/20/2012

Degas Bottle

Removal

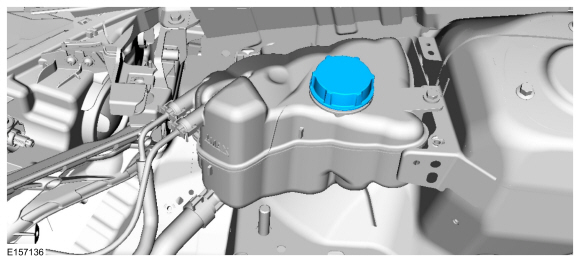

NOTE: Removal steps in this procedure may contain installation details.

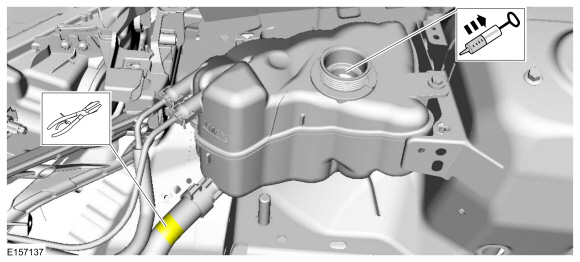

  1. WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

    Refer to: Engine Cooling System Health and Safety Precautions (100-00 General Information, Description and Operation).

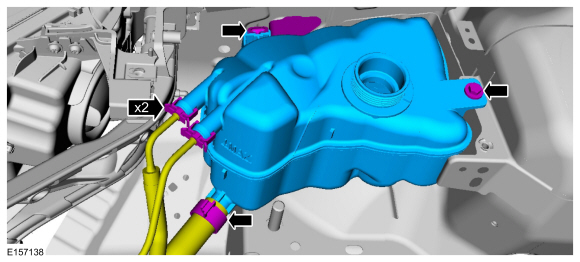

  1. General Equipment : Hose Clamp(s)
  1. Torque : 9 Nm

Installation

  1. To install, reverse the removal procedure.
    Material : Motorcraft® Orange Antifreeze/Coolant Prediluted / VC-3DIL-B (WSS-M97B44-D2)
