Front Display Interface Module (FDIM)

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

   Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).


1. Refer to: Front Controls Interface Module (FCIM) (415-00A Information and Entertainment System - General Information - Vehicles With: Touchscreen Display, Removal and Installation).

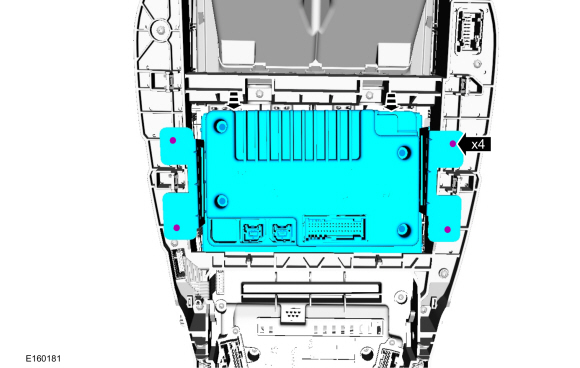

1. Torque : 2.5 Nm

1. Torque : 1 Nm

Installation

1. To install, reverse the removal procedure.


1. Refer to: Touchscreen Calibration (415-00A Information and Entertainment System - General Information - Vehicles With: Touchscreen Display, General Procedures).
