501-03 Body Closures 2013 - 2014 MKZ
General Procedures Procedure revision date: 07/15/2013

Luggage Compartment Lid Alignment

  1. Check body to luggage compartment lid dimensions.
    Refer to: Body and Frame - Overview (501-26 Body Repairs - Vehicle Specific Information and Tolerance Checks, Description and Operation).

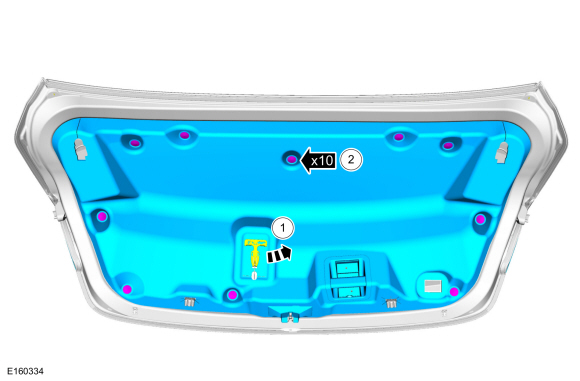

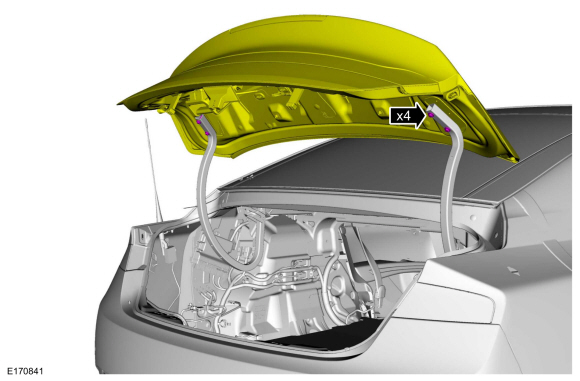

  1. Refer to: Luggage Compartment Lid Power Striker Motor (501-14 Handles, Locks, Latches and Entry Systems, Removal and Installation).

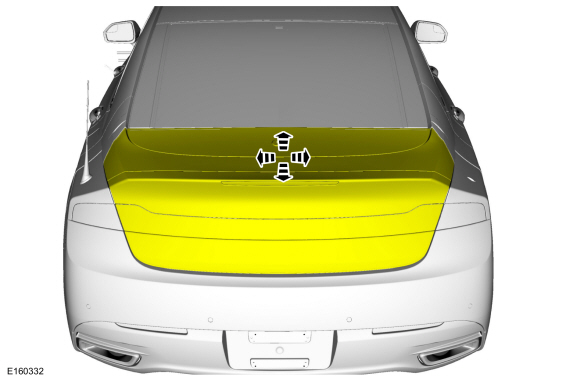

  1. Adjust the luggage compartment lid to specifications.
    Refer to: Body and Frame - Overview (501-26 Body Repairs - Vehicle Specific Information and Tolerance Checks, Description and Operation).

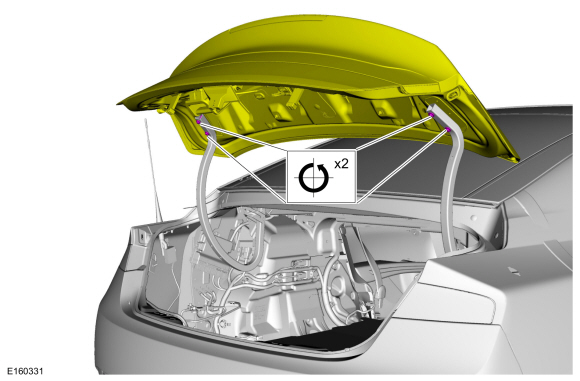

  1. Torque : 10 Nm
  1. Check the luggage compartment lid to body specifications.
    Refer to: Body and Frame - Overview (501-26 Body Repairs - Vehicle Specific Information and Tolerance Checks, Description and Operation).

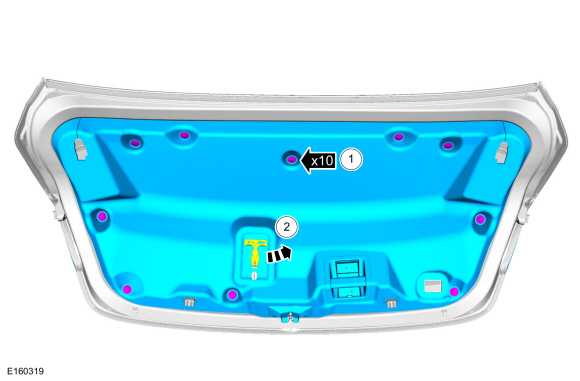

  1. Refer to: Luggage Compartment Lid Power Striker Motor (501-14 Handles, Locks, Latches and Entry Systems, Removal and Installation).
  1. Check body to luggage compartment lid dimensions.
    Refer to: Body and Frame - Overview (501-26 Body Repairs - Vehicle Specific Information and Tolerance Checks, Description and Operation).
