Front Parking Aid Sensor

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

   Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).


All sensors

1. Refer to: Front Bumper (501-19 Bumpers, Removal and Installation).

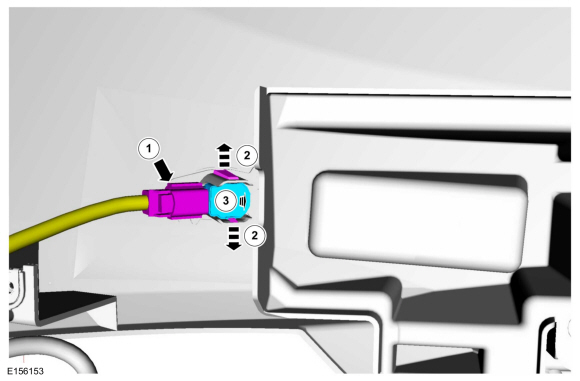

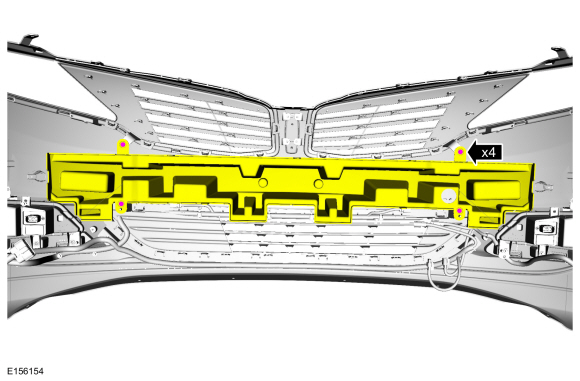

Outer front parking aid sensors

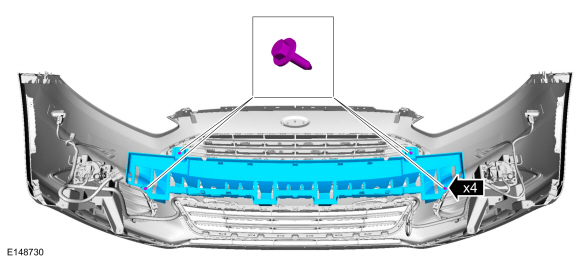

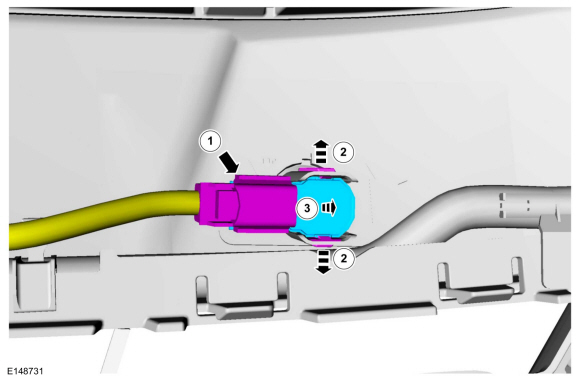

Inner front parking aid sensors

Installation

1. To install, reverse the removal procedure.


1. Carry out the azimuth and elevation system checks.
   Refer to: Azimuth System Check (413-13A Parking Aid, General Procedures).
   Refer to: Elevation System Check (413-13A Parking Aid, General Procedures).
