Rear Parking Aid Sensor

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

   Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).


1. Remove the rear bumper cover.
   Refer to: Rear Bumper Cover (501-19 Bumpers, Removal and Installation).

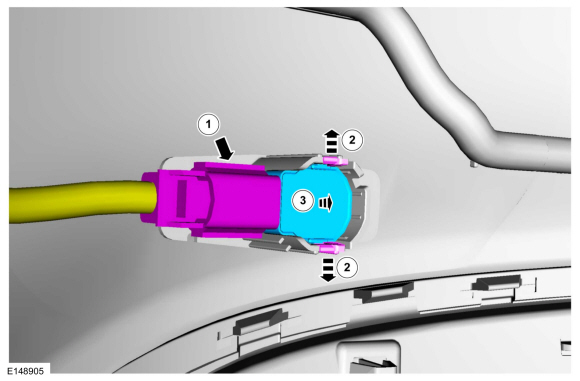

1. NOTE: RH outer parking aid sensor shown, all others similar.

Installation

1. To install, reverse the removal procedure.


1. Carry out the azimuth and elevation system checks.
   Refer to: Azimuth System Check (413-13A Parking Aid, General Procedures).
   Refer to: Elevation System Check (413-13A Parking Aid, General Procedures).
