Rear Door Glass Top Run

Removal

NOTE: LH side shown, RH side similar.

NOTE: Removal steps in this procedure may contain installation details.

1. WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

   Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).

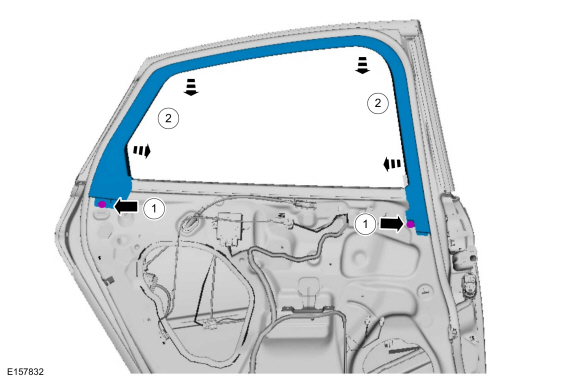

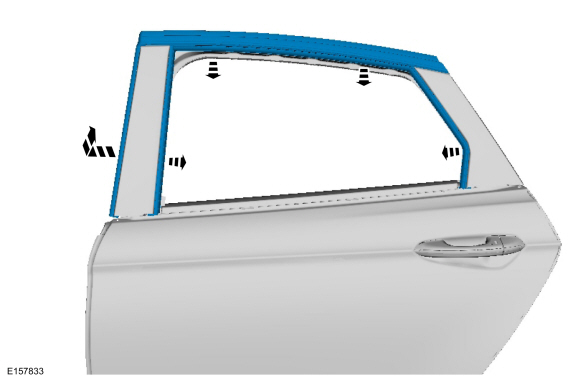

1. Refer to: Rear Door Window Glass (501-11 Glass, Frames and Mechanisms, Removal and Installation).

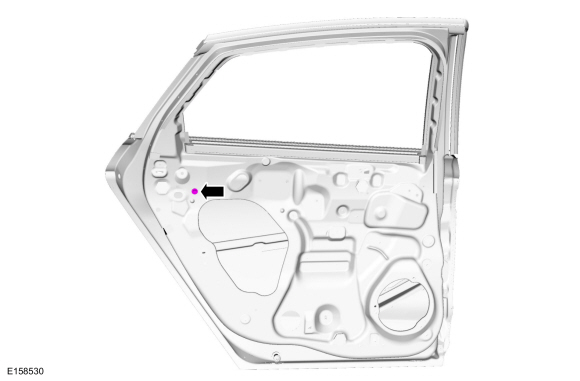

1. Torque : 10 Nm

Installation

1. To install, reverse the removal procedure.


1. Perform the power door window initialization.
   Refer to: Power Door Window Initialization (501-11 Glass, Frames and Mechanisms, General Procedures).
