501-16 Wipers and Washers 2013 - 2014 MKZ
Removal and Installation Procedure revision date: 11/1/2012

Wiper Linkage Assembly

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

    Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).
  1. Refer to: Cowl Panel Grille (501-02 Front End Body Panels, Removal and Installation).

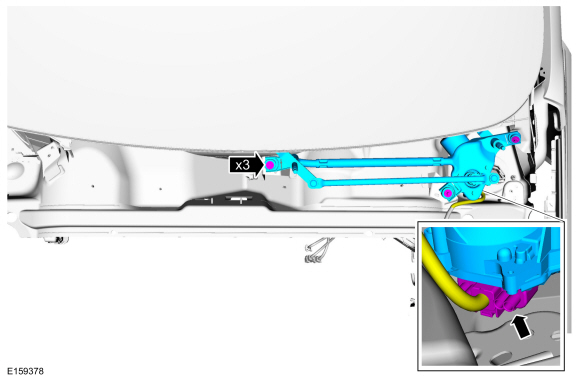

  1. Torque : 7 Nm
  1. This step is only necessary when replacing the component.

Installation

  1. To install, reverse the removal procedure.
