418-00 Module Communications Network 2013 - 2014 MKZ
Removal and Installation Procedure revision date: 06/11/2013

Gateway Module A (GWM)

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

    Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).
  1. Remove the driver knee airbag.
    Refer to: Driver Knee Airbag (501-20B Supplemental Restraint System, Removal and Installation).

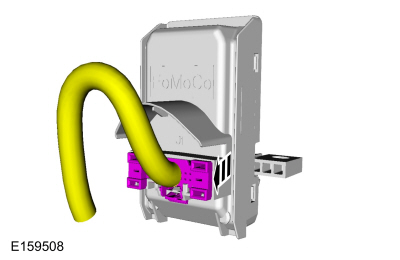

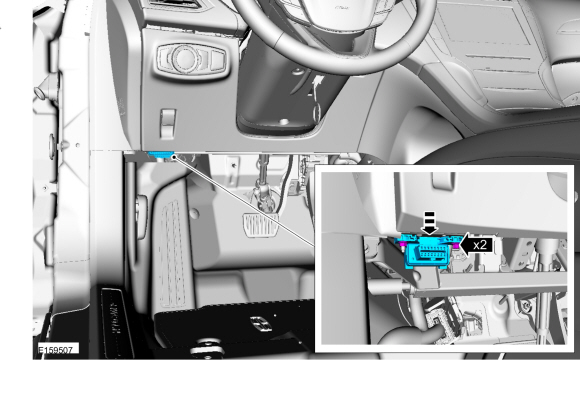

  1. Torque : 6 Nm

Installation

  1. To install, reverse the removal procedure.
