Rear Lifter Arm

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

   Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).

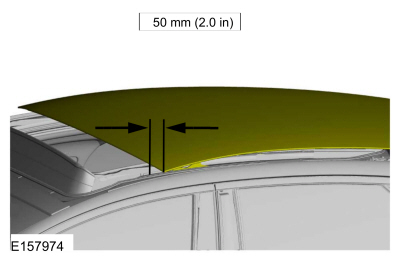

1. Past vent.

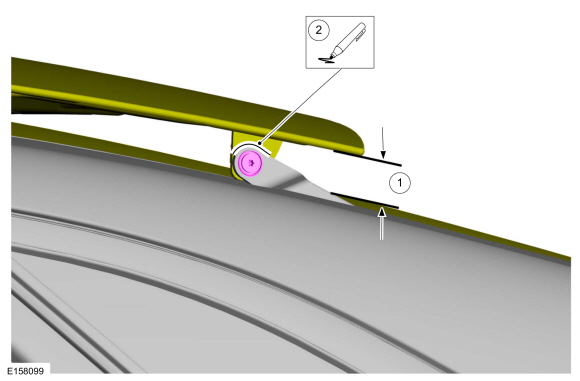

1. Record glass to glass height. Both sides, all steps.

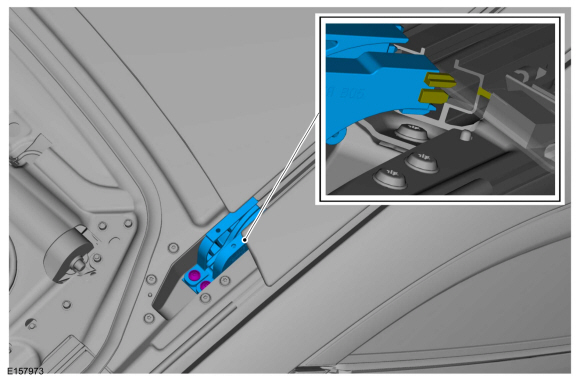

   Material : Threadlock 262 / TA-26 (WSK-M2G351-A6)
   Torque : 6.5 Nm

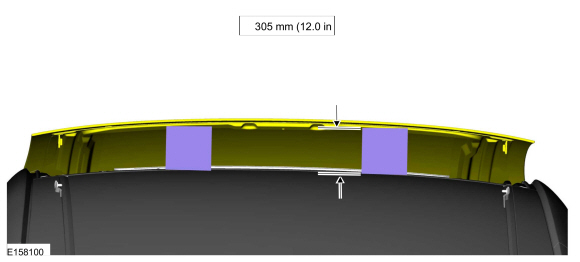

1. General Equipment : Wooden Block
   Dimension : 10  in ( 305  mm)

1. Refer to: Roof Opening Panel Glass (501-17A Roof Opening Panel - Vehicles With: Panoramic Roof Opening Panel, Removal and Installation).

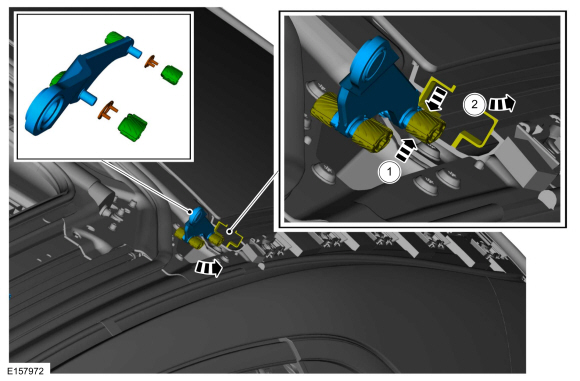

1. Glass removed for clarity.


1. Material : Threadlock 262 / TA-26 (WSK-M2G351-A6)
   Torque : 5 Nm

Installation

1. To install, reverse the removal procedure.


1. Material : Threadlock 262 / TA-26 (WSK-M2G351-A6)
   Torque : 5 Nm

1. Refer to: Power Roof Opening Panel Initialization (501-17A Roof Opening Panel - Vehicles With: Panoramic Roof Opening Panel, General Procedures).
