501-02 Front End Body Panels 2013 - 2014 MKZ
Removal and Installation Procedure revision date: 11/19/2012

Fender Splash Shield

Removal

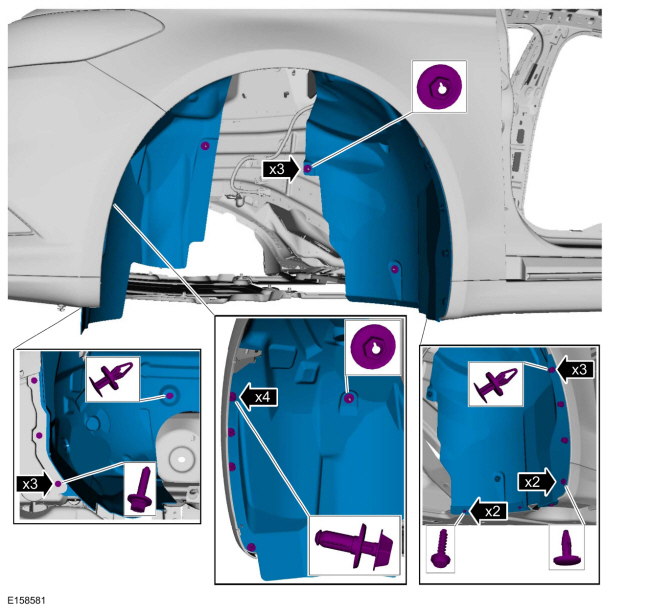

NOTE: LH (left-hand) side shown, RH (right-hand) side similar.

  1. WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

    Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).
  1. Refer to: Wheel and Tire (204-04B Wheels and Tires, Removal and Installation).

Installation

  1. To install, reverse the removal procedure.
