Generator - 3.7L Duratec (227kW/301PS)

Removal

1. WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

   Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).


1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).


1. Refer to: Air Conditioning (A/C) Compressor - 3.7L Duratec (227kW/301PS) (412-00 Climate Control System - General Information, Removal and Installation).


Installation

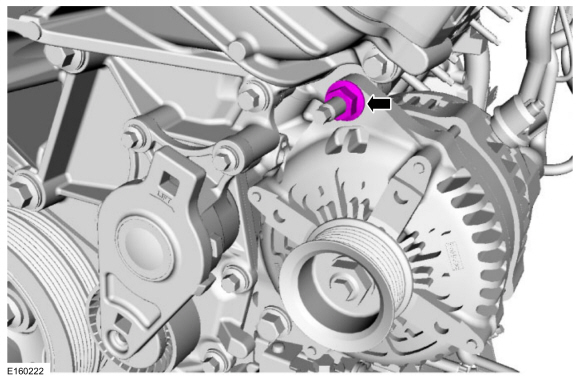

1. Torque : 8 Nm

1. Torque : 47 Nm

1. Torque : 47 Nm

1. Torque : 17 Nm

1. Torque : 12 Nm

1. Torque : 20 Nm

1. Refer to: Air Conditioning (A/C) Compressor - 3.7L Duratec (227kW/301PS) (412-00 Climate Control System - General Information, Removal and Installation).


1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).
