308-07C Transfer Case - Vehicles With: 6-Speed Automatic Transmission - 6F35 2013 - 2014 MKZ
Removal and Installation Procedure revision date: 08/22/2012

Transfer Case Input Shaft Seal RH

Removal

  1. Refer to: Front Halfshaft RH (205-04 Front Drive Halfshafts, Removal and Installation).

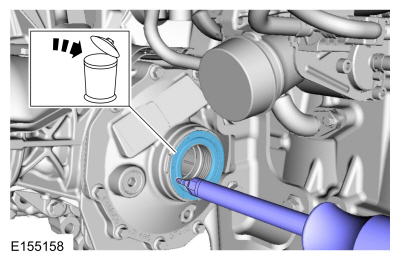

  1. General Equipment : Puller

Installation

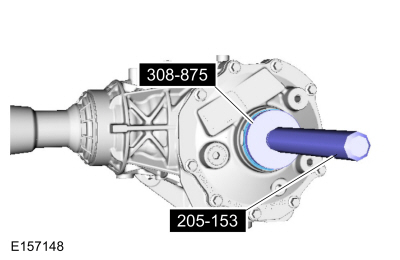

  1. NOTE: The seal is correctly installed if it is flush with the transfer case cover.

    Special Tool(s) : 308-875 Installer, Inboard Cover Seal , 205-153 (T80T-4000-W) Handle
  1. Refer to: Front Halfshaft RH (205-04 Front Drive Halfshafts, Removal and Installation).
