205-02 Rear Drive Axle/Differential 2013 - 2014 MKZ
Removal and Installation Procedure revision date: 08/29/2012

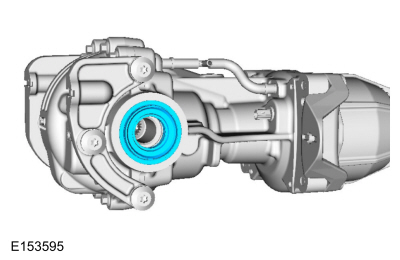

Rear Halfshaft Seal

Removal

  1. Refer to: Rear Halfshaft (205-05 Rear Drive Halfshafts, Removal and Installation).

Installation

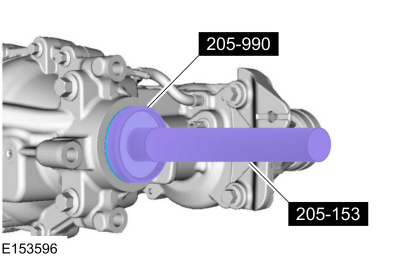

  1. Special Tool(s) : 205-153 (T80T-4000-W) Handle , 205-990 Installer, Axle Seal
  1. Refer to: Rear Halfshaft (205-05 Rear Drive Halfshafts, Removal and Installation).
  1. Material : Motorcraft® SAE 80W-90 Premium Rear Axle Lubricant / XY-80W90-QL (WSP-M2C197-A)
    Torque : 29 Nm
