Radiator

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

   Refer to: Engine Cooling System Health and Safety Precautions (100-00 General Information, Description and Operation).


1. Refer to: Cooling Fan Motor and Shroud (303-03B Engine Cooling - 2.0L EcoBoost (184kW/250PS) - MI4, Removal and Installation).

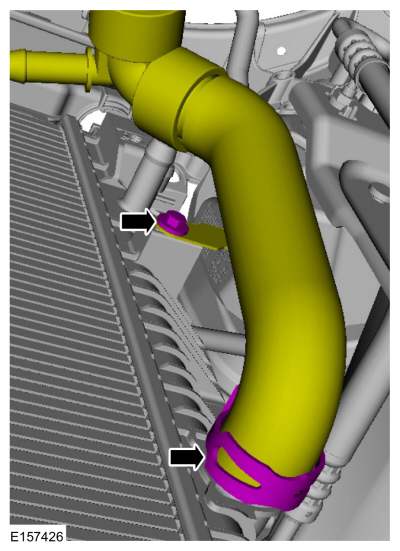

1. General Equipment : Hose Clamp Remover/Installer

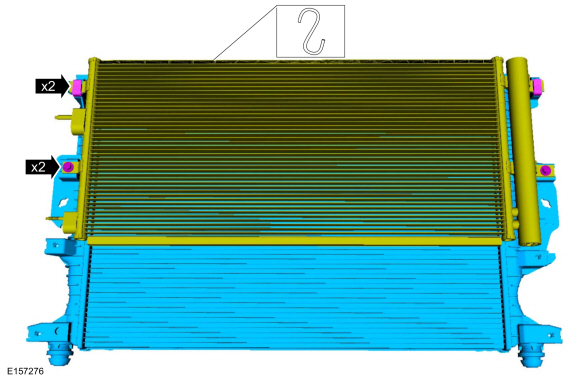

   Torque : 7 Nm

1. Torque : 6 Nm

Installation

1. To install, reverse the removal procedure.
