Radiator

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

   Refer to: Engine Cooling System Health and Safety Precautions (100-00 General Information, Description and Operation).


1. Refer to: Cooling System Draining and Vacuum Filling (303-03A Engine Cooling - 3.7L Duratec (227kW/301PS), General Procedures).


1. Refer to: Cooling Fan Motor and Shroud (303-03A Engine Cooling - 3.7L Duratec (227kW/301PS), Removal and Installation).

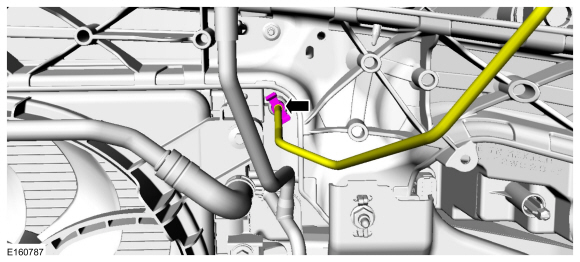

1. Torque : 6 Nm

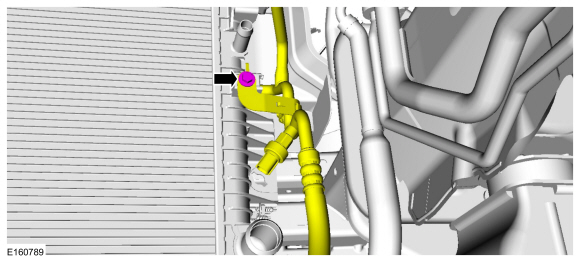

1. NOTE: Support the A/C condenser.

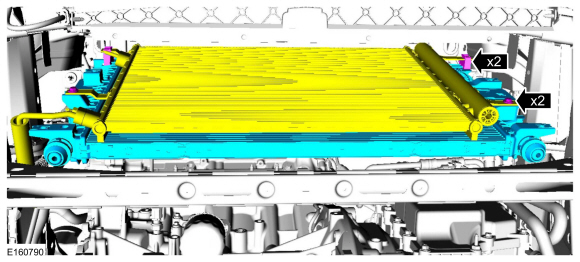

   Torque : 6 Nm

Installation

1. To install, reverse the removal procedure.
