303-14A Electronic Engine Controls - 3.7L Duratec (227kW/301PS) 2013 - 2014 MKZ
Removal and Installation Procedure revision date: 06/14/2013

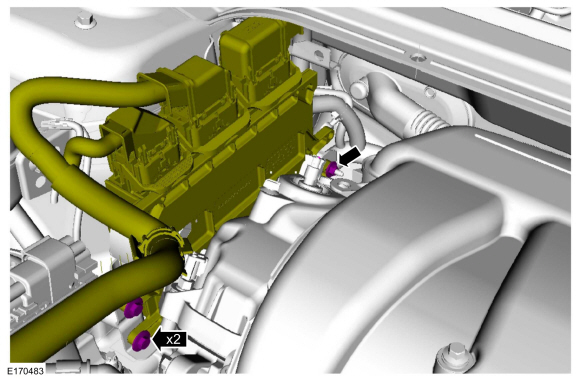

Powertrain Control Module (PCM)

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. NOTE: This step is only necessary when installing a new component.

    Download the module information to the diagnostic tool using the Programmable Modules Installation routine.
    General Equipment : Ford Diagnostic Equipment
  1. Torque : 10 Nm

Installation

  1. To install, reverse the removal procedure.

  1. NOTE: This step is only necessary when installing a new component.

    Upload the module information from the diagnostic tool to the module using the Programmable Modules Installation routine.
    General Equipment : Ford Diagnostic Equipment
