| 307-01B Automatic Transmission - Vehicles With: 6-Speed Automatic Transmission - 6F35 | 2013 - 2014 MKZ |
| Description and Operation | Procedure revision date: 08/24/2012 |

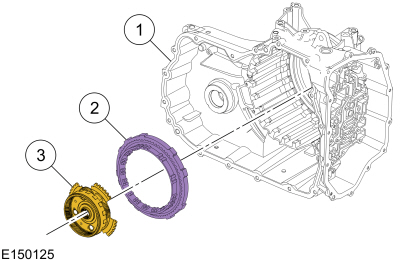

Low One-Way Clutch Exploded View
| Item | Part Number | Description |
|---|---|---|
| 1 | 7005 | Transmission case |
| 2 | 7A089 | Low One-Way Clutch |
| 3 | 7D491 | Rear planetary carrier |

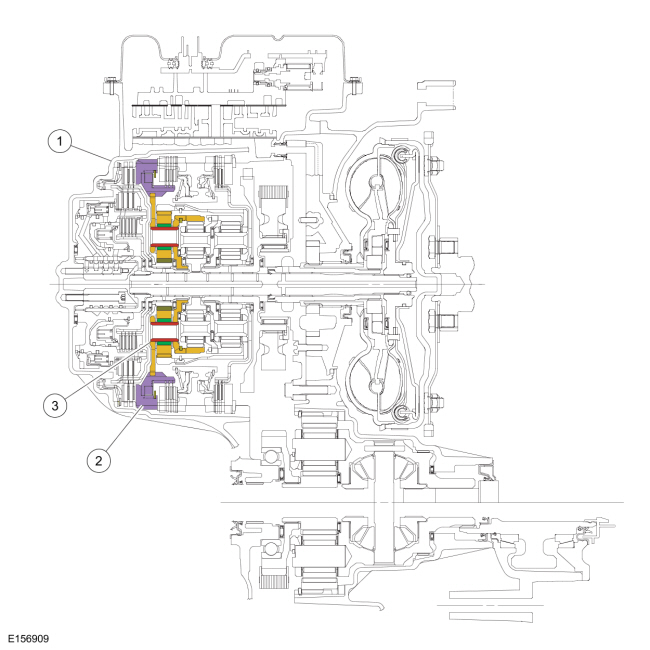

Low One-Way Clutch Cutaway View
Low One way Clutch
The low One-Way Clutch (OWC) is a brake clutch that holds the rear planetary carrier in one direction and allows it to freewheel in the opposite direction which eliminates engine braking in 1st gear when the transmission is in DRIVE. The low One-Way Clutch (OWC) is also the pressure plate for the intermediate (2, 6) clutch.
