501-17B Roof Opening Panel - Vehicles With: Roof Opening Panel 2013 - 2014 MKZ
Removal and Installation Procedure revision date: 05/15/2013

Roof Opening Panel Shield

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Both sides.
    Refer to: A-Pillar Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

  1. NOTE: Disconnect as necessary to lower the headliner.

    Both sides.
  1. Both sides.
    Refer to: B-Pillar Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
  1. Both sides.
    Refer to: C-Pillar Upper Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
  1. If equipped.
  1. If equipped.
  1. Both sides.
  1. Both sides.
  1. All.

  1. NOTICE: When releasing the magnets around the roof opening panel area, pull down on the plastic headliner reinforcement between the headliner and the roof or damage to the headliner may result.

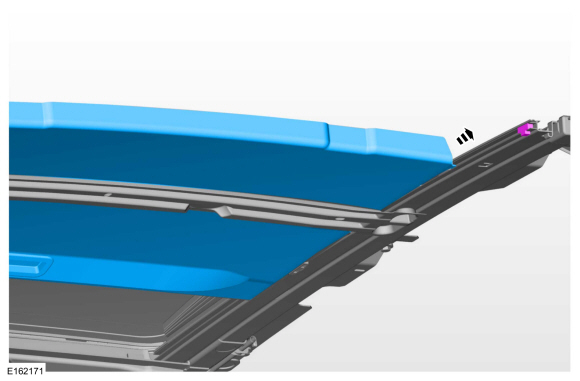

    Release the seven magnets and two guide pins and magnets.
  1. Retainer on both sides.

Installation

  1. To install, reverse the removal procedure.
