Roof Opening Panel Motor

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Both sides.
   Refer to: A-Pillar Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).


1. Both sides.
   Refer to: B-Pillar Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).


1. Both sides.
   Refer to: C-Pillar Upper Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

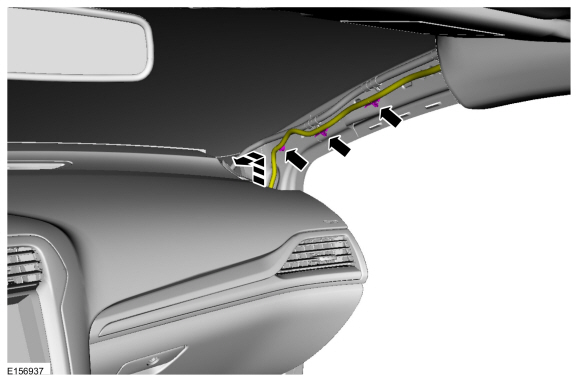

1. If equipped.

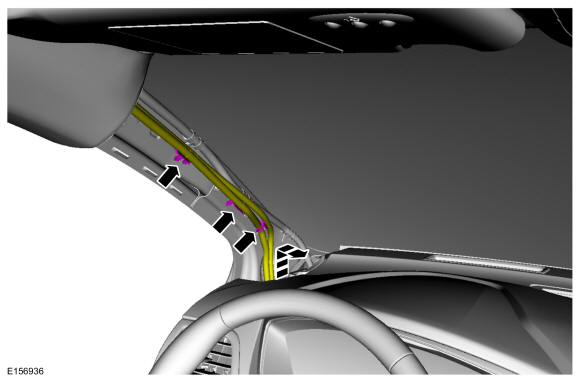

1. If equipped.


1. Both sides.


1. Both sides.


1. All.


1. NOTICE: When releasing the magnets around the roof opening panel area, pull down on the plastic headliner reinforcement between the headliner and the roof or damage to the headliner may result.

   Release the seven magnets and two guide pins and magnets.

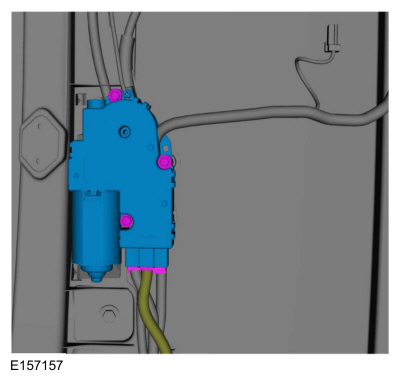

1. Torque : 4 Nm

Installation

1. NOTE: When installing the roof opening panel motor, it may be necessary to turn the roof opening panel motor slightly to engage the drive splines.

   To install, reverse the removal procedure.


1. Refer to: Power Roof Opening Panel Initialization (501-17B Roof Opening Panel - Vehicles With: Roof Opening Panel, General Procedures).
