Roof Opening Panel Glass

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

   Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).

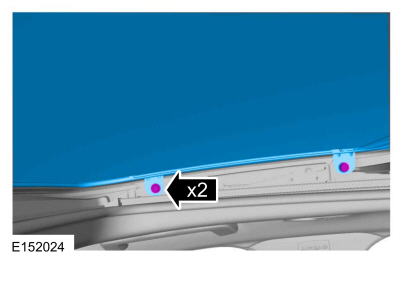

1. Both sides.

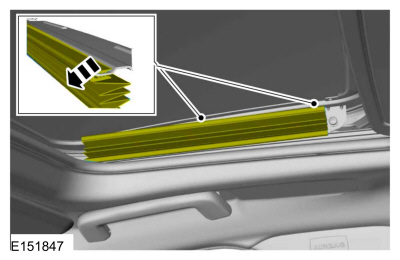

1. NOTE: Blind removed for clarity.

   Both sides.
   Torque : 6 Nm

Installation

1. To install, reverse the removal procedure.


1. Refer to: Roof Opening Panel Alignment (501-17B Roof Opening Panel - Vehicles With: Roof Opening Panel, General Procedures).


1. Refer to: Power Roof Opening Panel Initialization (501-17B Roof Opening Panel - Vehicles With: Roof Opening Panel, General Procedures).
