501-17B Roof Opening Panel - Vehicles With: Roof Opening Panel 2013 - 2014 MKZ
General Procedures Procedure revision date: 10/16/2012

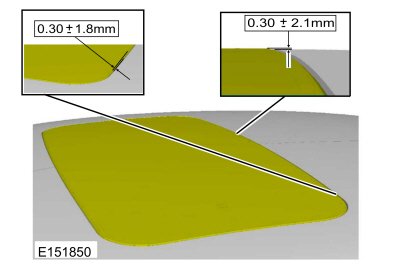

Roof Opening Panel Alignment

WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

  1. Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).

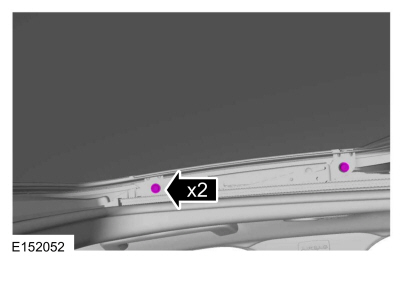

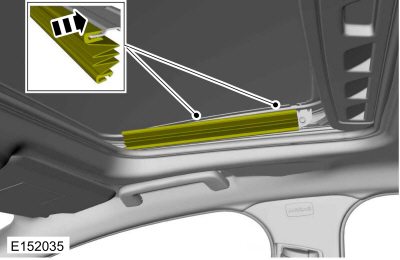

  1. NOTE: Roof opening panel blind removed for clarity.

    Both sides. Loosen only, for alignment.
  1. Torque : 6 Nm
  1. Refer to: Power Roof Opening Panel Initialization (501-17B Roof Opening Panel - Vehicles With: Roof Opening Panel, General Procedures).
