Roof Opening Panel Motor

Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: Shield motor shown, roof opening panel glass motor similar.

1. WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

   Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).


1. Refer to: Parcel Shelf (501-05 Interior Trim and Ornamentation, Removal and Installation).

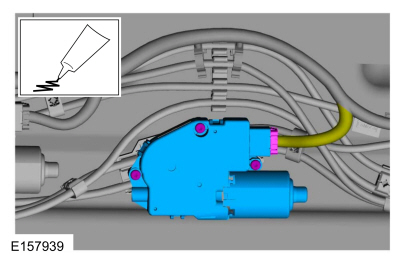

1. NOTE: If using original retainers, clean the thread locking adhesive from threads, then apply new thread locking adhesive.

   Material : Threadlock 262 / TA-26 (WSK-M2G351-A6)
   Torque : 6.5 Nm

Installation

1. NOTE: During installation, it may be necessary to slightly rotate the motor clockwise or counterclockwise for the gear teeth to set into the drive cable correctly.

   To install, reverse the removal procedure.


1. Refer to: Power Roof Opening Panel Initialization (501-17A Roof Opening Panel - Vehicles With: Panoramic Roof Opening Panel, General Procedures).
