501-17A Roof Opening Panel - Vehicles With: Panoramic Roof Opening Panel 2013 - 2014 MKZ
Removal and Installation Procedure revision date: 10/16/2012

Air Deflector

Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: If using original retainers, clean the thread locking adhesive from threads, then apply new thread locking adhesive.

  1. WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

    Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).

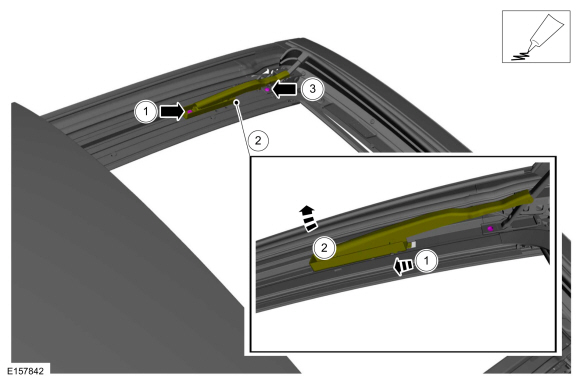

  1. Both sides.
    Material : Threadlock 262 / TA-26 (WSK-M2G351-A6)
    Torque : 5 Nm

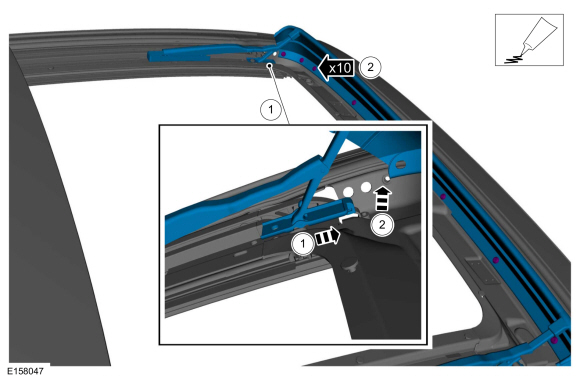

  1. Both sides.
    Material : Threadlock 262 / TA-26 (WSK-M2G351-A6)
    Torque : 5 Nm

Installation

  1. To install, reverse the removal procedure.

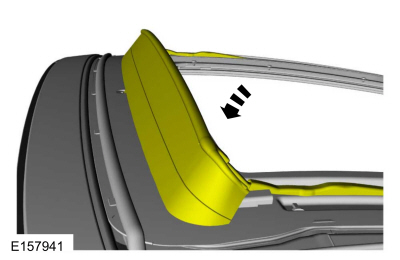

  1. NOTE: The air deflector must move freely before closing the roof opening panel.

  1. Refer to: Power Roof Opening Panel Initialization (501-17A Roof Opening Panel - Vehicles With: Panoramic Roof Opening Panel, General Procedures).
