Timing Adjustment

1. WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

   Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).


1. Refer to: Roof Opening Panel Glass (501-17A Roof Opening Panel - Vehicles With: Panoramic Roof Opening Panel, Removal and Installation).


1. Both roof opening panel glass motors.
   Refer to: Roof Opening Panel Motor (501-17A Roof Opening Panel - Vehicles With: Panoramic Roof Opening Panel, Removal and Installation).


1. Both sides.

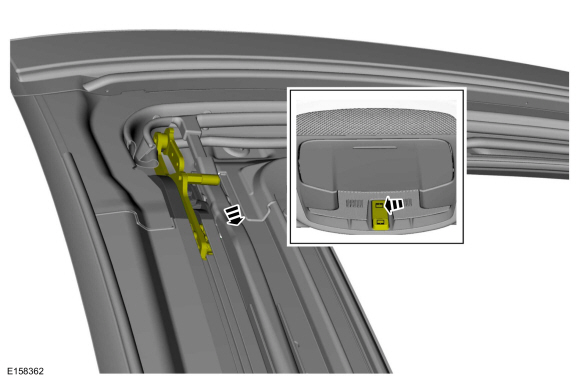

1. NOTE: The front lifter arms on both sides must be fully forward and into the front of the cam to time the drive cables.

   Both sides.


1. Refer to: Roof Opening Panel Motor (501-17A Roof Opening Panel - Vehicles With: Panoramic Roof Opening Panel, Removal and Installation).


1. Open the roof opening panel using the control switch.


1. Refer to: Roof Opening Panel Glass (501-17A Roof Opening Panel - Vehicles With: Panoramic Roof Opening Panel, Removal and Installation).
