501-17A Roof Opening Panel - Vehicles With: Panoramic Roof Opening Panel 2013 - 2014 MKZ
General Procedures Procedure revision date: 10/16/2012

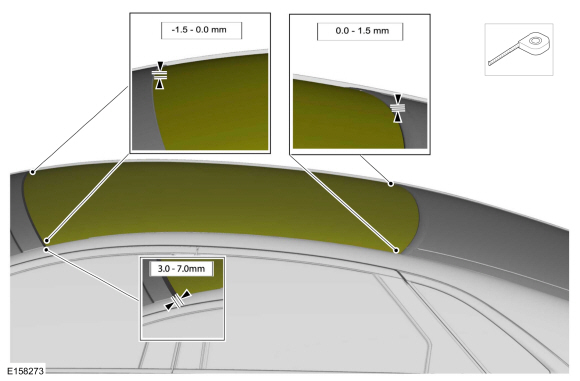

Roof Opening Panel Alignment

  1. WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

    Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).

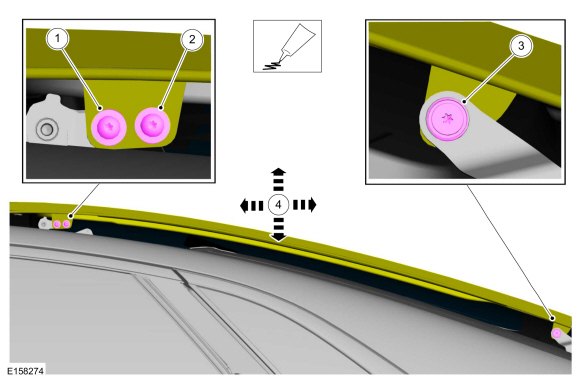

    1. To adjust front up or down, loosen bolt 1 only.
    1. To adjust front gap, loosen bolt 1 and bolt 2.
    1. To adjust rear up or down, loosen bolt 3 only.
    1. Adjust as necessary.
      Torque : 6 Nm
  1. Refer to: Power Roof Opening Panel Initialization (501-17A Roof Opening Panel - Vehicles With: Panoramic Roof Opening Panel, General Procedures).
