| 501-17A Roof Opening Panel - Vehicles With: Panoramic Roof Opening Panel | 2013 - 2014 MKZ |
| Description and Operation | Procedure revision date: 10/16/2012 |

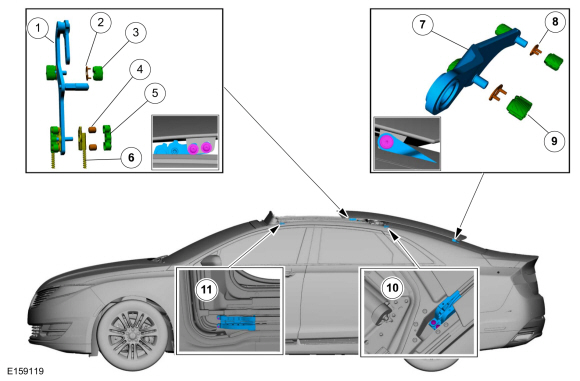

Roof Opening Panel Lifter Arms And Cams
| Item | Description |
|---|---|
| 1 | Front lifter arm |
| 2 | Front slider shoe |
| 3 | Front slider |
| 4 | Bushing |
| 5 | Mechanism slider |
| 6 | Drive cable |
| 7 | Rear lifter arm |
| 8 | Rear slider shoe |
| 9 | Rear slider |
| 10 | Rear cam |
| 11 | Front cam |

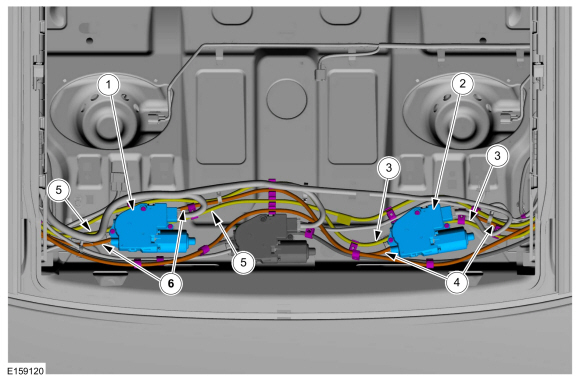

Roof Opening Panel Glass Motors (as viewed through the rear window glass)
| Item | Description |
|---|---|
| 1 | Secondary roof opening panel glass motor |
| 2 | Primary roof opening panel glass motor |
| 3 | Primary roof opening panel motor drive cable housing |
| 4 | Primary roof opening panel motor return cable housing |
| 5 | Secondary roof opening panel motor drive tubes |
| 6 | Secondary roof opening panel motor return cable housing |

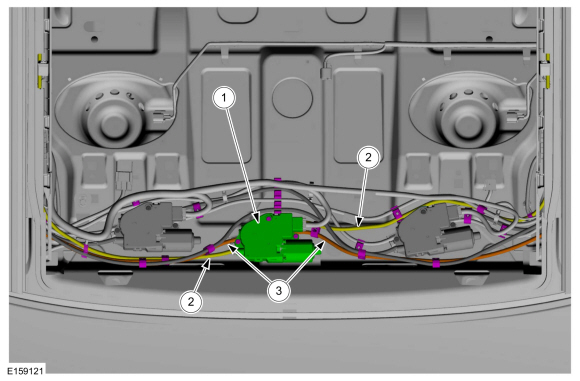

Roof Opening Panel Shield Motor (as viewed through the rear window glass)
| Item | Description |
|---|---|
| 1 | Roof opening panel shield motor |
| 2 | Roof opening panel shield drive cable housing |
| 3 | Roof opening panel shield return cable housing |

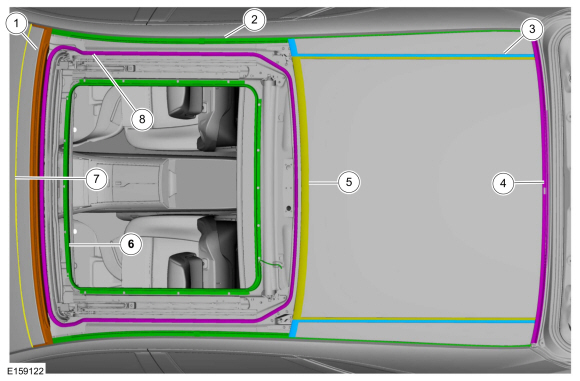

Roof Opening Panel Seals and Anti-Pinch Switch
| Item | Description |
|---|---|
| 1 | Front trim panel seal (attached to front trim panel) |
| 2 | Body side seal |
| 3 | Track seal |
| 4 | Decklid seal |
| 5 | Rear glass seal |
| 6 | Anti-pinch switch |
| 7 | Windshield seal (attached to front trim panel) |
| 8 | Main compression seal |

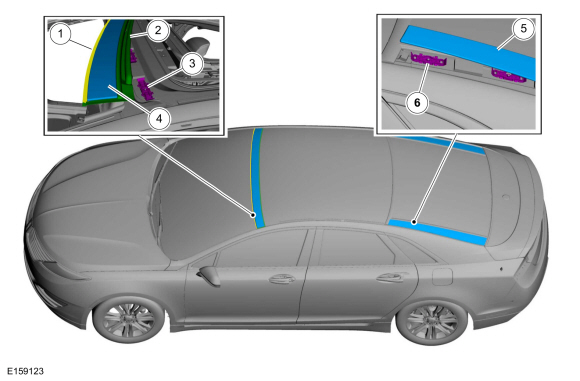

Roof Opening Panel Trim
| Item | Description |
|---|---|
| 1 | Windshield seal (attached to front trim panel) |
| 2 | Front trim panel seal (attached to front trim panel) |
| 3 | Front trim panel retaining clips |
| 4 | Front trim panel |
| 5 | Rear trim panel |
| 6 | Rear trim panel retaining clips |

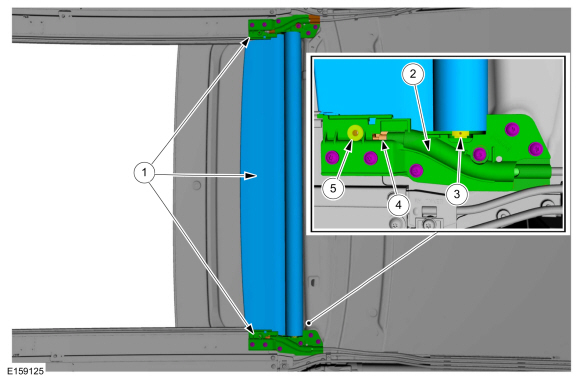

Roof Opening Panel Shield (as viewed from inside)
| Item | Description |
|---|---|
| 1 | Roof opening panel shield assembly |
| 2 | Splitter |
| 3 | Shield tension retaining pin locator hole (pin is pre-loaded on service assembly) |
| 4 | Roof opening panel drive cable (between splitter and frame) |
| 5 | Roof opening panel shield assembly to drive cable alignment access hole |

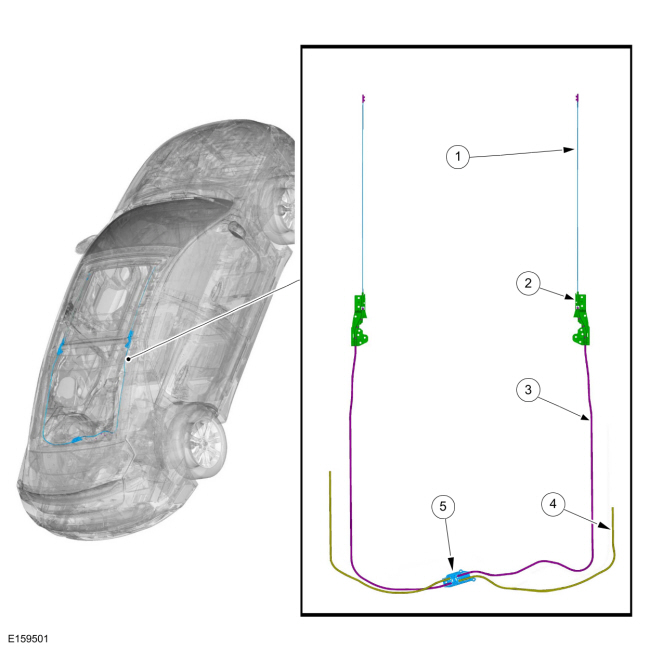

Roof Opening Panel Shield Cable and Guide
| Item | Description |
|---|---|
| 1 | Roof opening panel shield drive cable |
| 2 | Splitter |
| 3 | Roof opening panel shield drive cable tube |
| 4 | Roof opening panel shield cable return tube |
| 5 | Roof opening panel shield motor block |

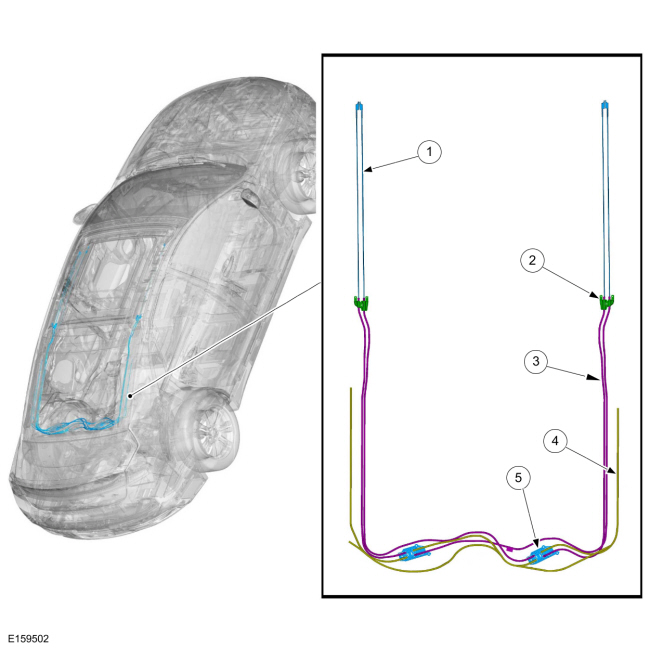

Roof Opening Panel Cable and Guide
| Item | Description |
|---|---|
| 1 | Roof opening panel drive cable |
| 2 | Splitter |
| 3 | Roof opening panel drive cable tube |
| 4 | Roof opening panel cable return tube |
| 5 | Roof opening panel motor block |

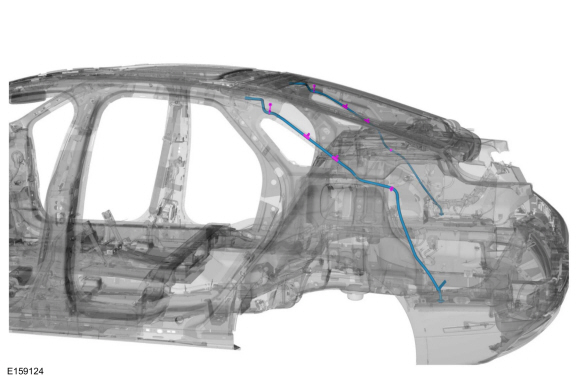

Roof Opening Panel Drain Tubes
