Air Conditioning (A/C) Compressor - 3.7L Duratec (227kW/301PS)

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

   Refer to: Climate Control System Health and Safety Precautions (100-00 General Information, Description and Operation).


1. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging (412-00 Climate Control System - General Information, General Procedures).


1. Refer to: Accessory Drive Belt (303-05A Accessory Drive - 3.7L Duratec (227kW/301PS), Removal and Installation).

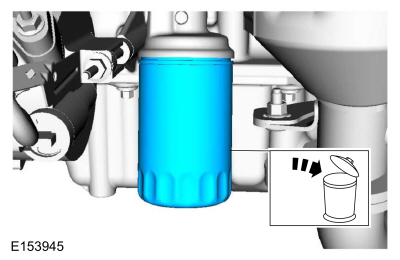

1. NOTE: Do not lubricate the engine oil filter seal.

   Torque :
     Stage 1:  5 Nm
     Stage 2:  180°

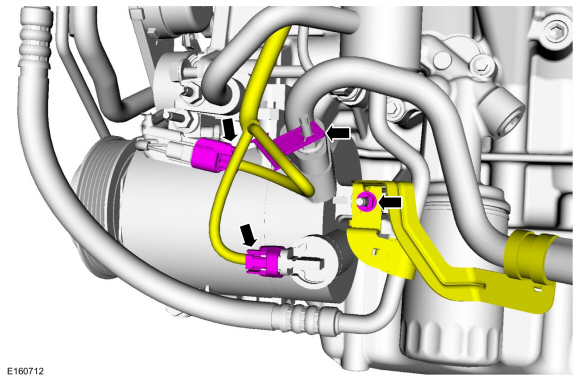

1. Torque : 5 Nm

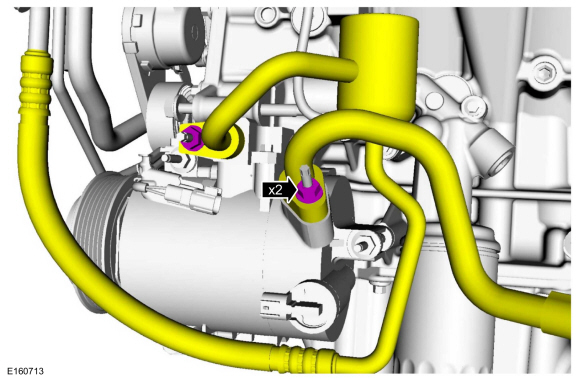

1. Torque : 20 Nm

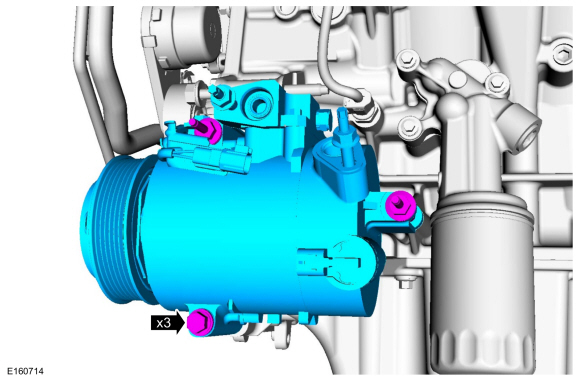

1. Torque : 25 Nm

Installation

1. NOTE: Check the fluid level.

   To install, reverse the removal procedure.


1. Refer to: Refrigerant Oil Adding (412-00 Climate Control System - General Information, General Procedures).
