Torque Converter Housing

DISASSEMBLY

WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

1. Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).

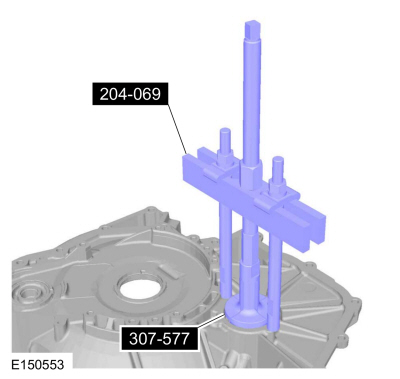

1. Special Tool(s) : 204-069 (T81P-1104-C) Remover/Installer, Front Wheel Hub , 307-577 Transfer Gear Bearing race remover

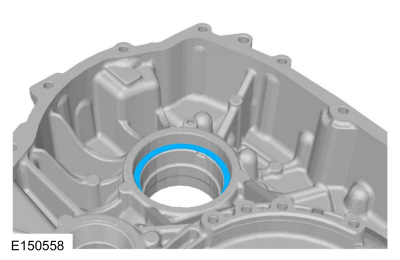

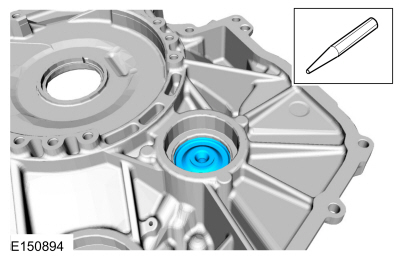

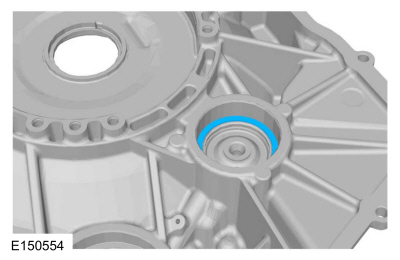

1. Punch a hole in the fluid dam.
   General Equipment : Punch

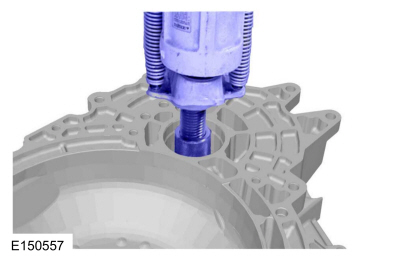

1. General Equipment : Puller

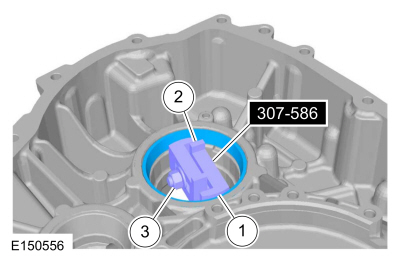

1. 1. Position the Differential Bearing Cup Remover 307-586 in the torque converter housing with the tabs on the Differential Bearing Cup Remover 307-586 aligned with the slots in the torque converter housing.
      Special Tool(s) : 307-586 Differential bearing cup remover
   2. Expand the Differential Bearing Cup Remover 307-586 by hand.

   3. While holding the Differential Bearing Cup Remover 307-586 in the expanded position with the tabs in the slots of the torque converter housing, tighten the nut.


1. General Equipment : Hydraulic Press

ASSEMBLY

1. NOTE: Temporarily install the transfer shaft in the transmission case.

1. NOTE: Tilt the transfer shaft and gear assembly over and temporarily install the differential assembly.

1. Special Tool(s) : 307-591 Shim Gauge, Differential/Transfer Gear Bearing

1. Special Tool(s) : 307-591 Shim Gauge, Differential/Transfer Gear Bearing

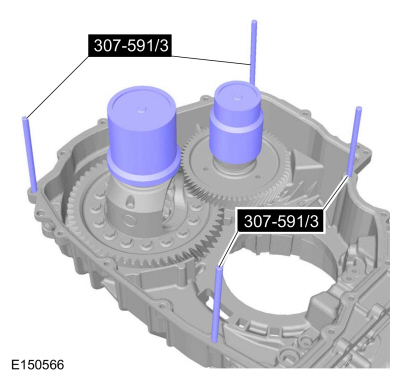

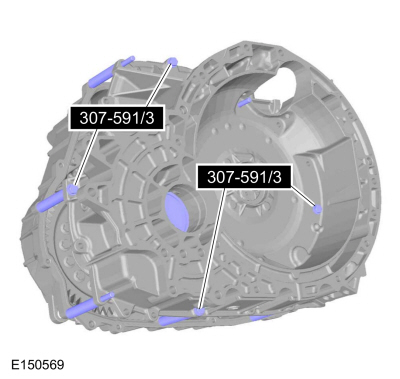

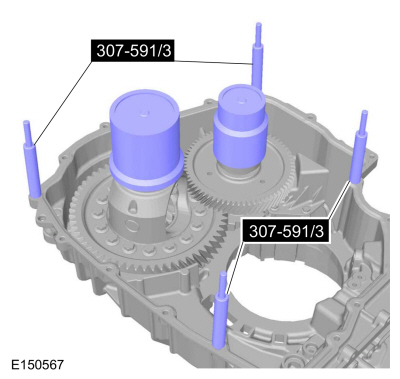

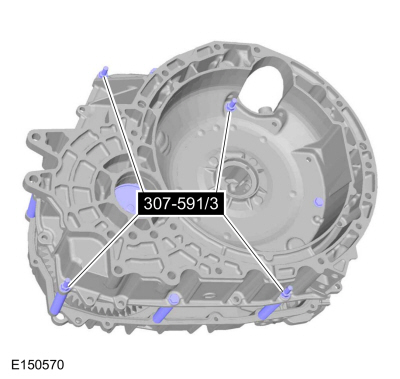

1. NOTE: Make sure that the silicone has been cleaned off the machined surface of the transmission case and the torque converter housing before installing the Differential/Transfer Gear Bearing Shim Gauge 307-591/3 (4 spacers) or the preload measurement may be inaccurate.

   Special Tool(s) : 307-591 Shim Gauge, Differential/Transfer Gear Bearing

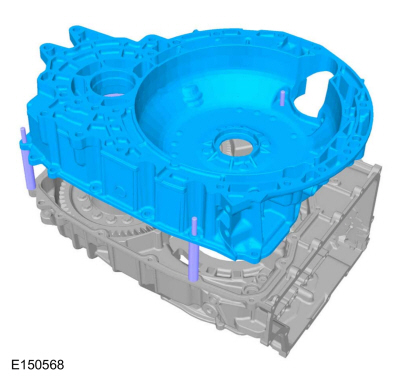

1. Special Tool(s) : 307-591 Shim Gauge, Differential/Transfer Gear Bearing
   Torque : 24 Nm

1. Special Tool(s) : 307-591 Shim Gauge, Differential/Transfer Gear Bearing
   Torque : 24 Nm

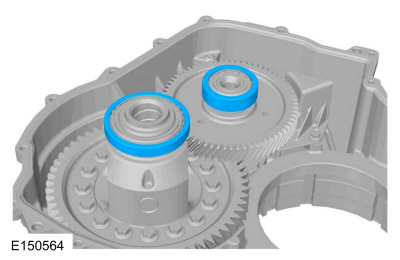

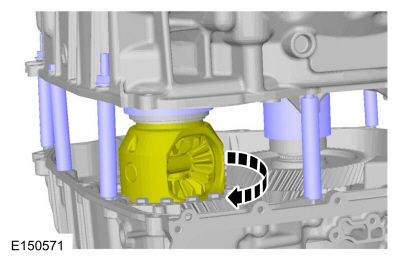

1. Rotate the transfer shaft and the differential several times to seat the bearing cups.

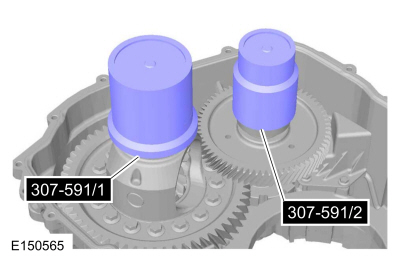

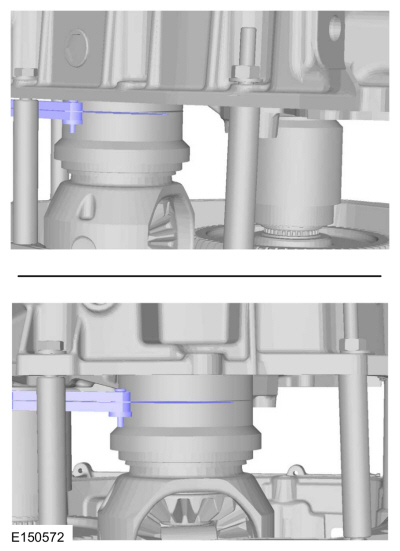

1. Measure and record the smallest and largest preload gap on the Shim Gauge, Differential/Transfer Gear Bearing 307-591/1. Average the 2 measurements to get the thickness of the differential bearing preload shim. For the differential bearing preload shim part number.
   Refer to: Specifications (307-01A Automatic Transmission - Vehicles With: 6-Speed Automatic Transmission - 6F50, Specifications).

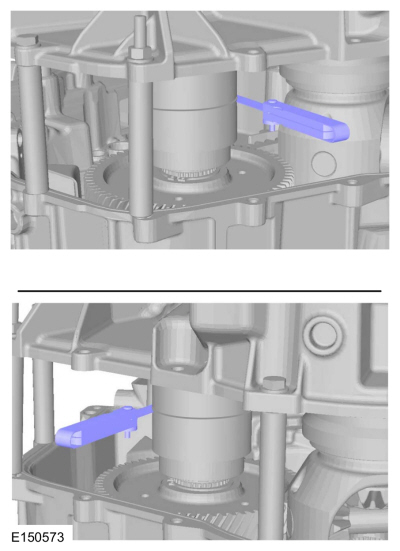

   General Equipment : Feeler Gauge

1. Measure and record the smallest and largest preload gap on Shim Gauge, Differential/Transfer Gear Bearing 307-591/2. Average the 2 measurements to get the thickness of the transfer shaft bearing preload shim. For the transfer gear bearing preload shim part number.
   Refer to: Specifications (307-01A Automatic Transmission - Vehicles With: 6-Speed Automatic Transmission - 6F50, Specifications).
   General Equipment : Feeler Gauge

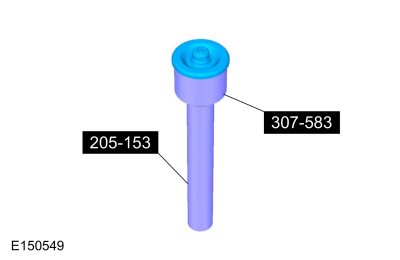

1. Special Tool(s) : 205-153 (T80T-4000-W) Handle , 307-583 Oil dam seal installer

1. NOTICE: Support the torque converter housing using blocks of wood, or damage to the torque converter housing may occur.

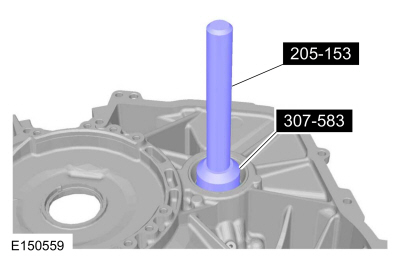

   Special Tool(s) : 205-153 (T80T-4000-W) Handle , 307-583 Oil dam seal installer

1. NOTE: Inspect the transfer shaft fluid dam to be sure it is seated evenly into the torque converter housing.

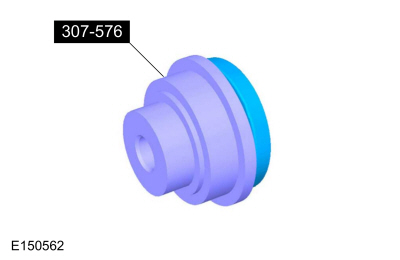

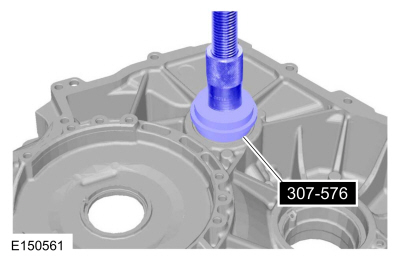

1. Special Tool(s) : 307-576 Bearing Cup Installer
   General Equipment : Hydraulic Press

1. Special Tool(s) : 307-576 Bearing Cup Installer

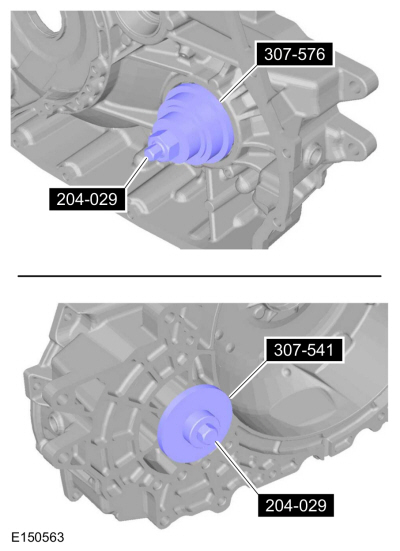

1. Special Tool(s) : 204-029 Drawbar , 307-541 Installer, Transfer Gear Bearing , 307-576 Bearing Cup Installer
