Transmission Case

DISASSEMBLY

WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

1. Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).

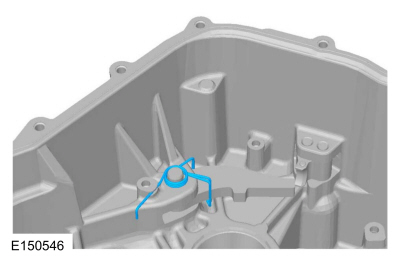

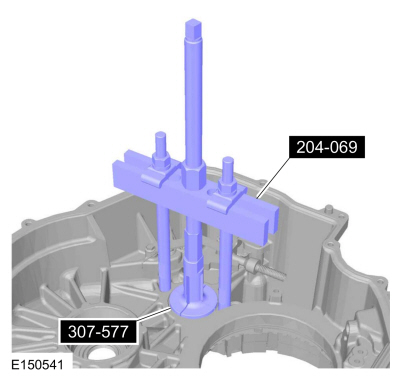

1. Special Tool(s) : 204-069 (T81P-1104-C) Remover/Installer, Front Wheel Hub , 307-577 Transfer Gear Bearing race remover

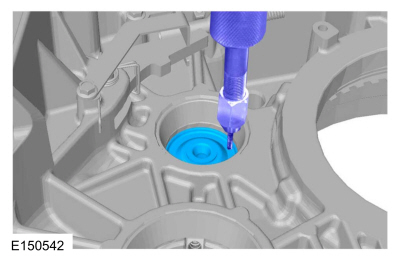

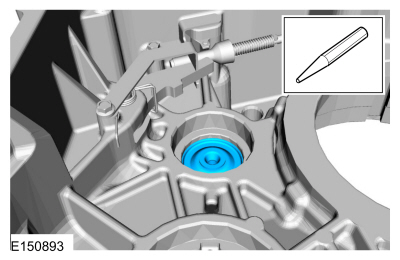

1. Punch a hole in the fluid dam.
   General Equipment : Punch

1. General Equipment : Puller

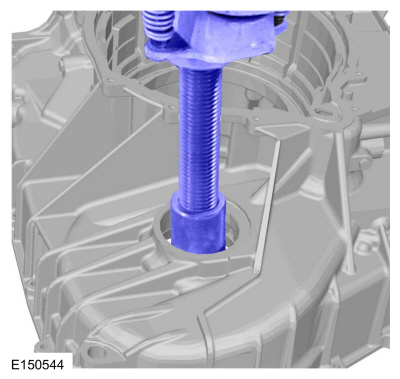

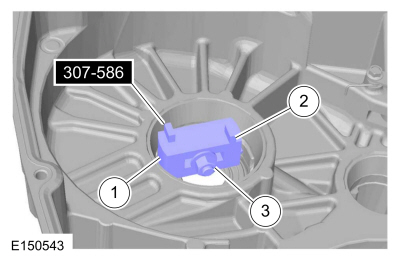

1. 1. Position the Differential Bearing Cup Remover 307-586 in the transmission case with the tabs on the Differential Bearing Cup Remover 307-586 aligned with the slots in the transmission case.
      Special Tool(s) : 307-586 Differential bearing cup remover
   2. Expand the Differential Bearing Cup Remover 307-586 by hand.

   3. While holding the Differential Bearing Cup Remover 307-586 in the expanded position with the tabs in the slots of the transmission case, tighten the nut.


1. General Equipment : Hydraulic Press

ASSEMBLY

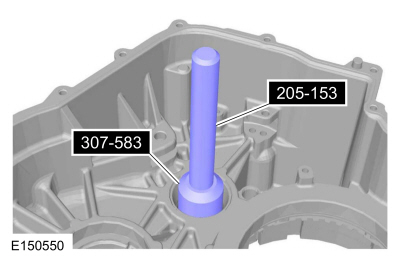

1. Special Tool(s) : 205-153 (T80T-4000-W) Handle , 307-583 Oil dam seal installer

1. Special Tool(s) : 205-153 (T80T-4000-W) Handle , 307-583 Oil dam seal installer

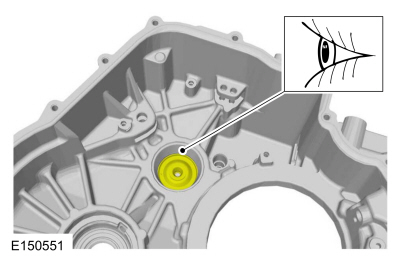

1. NOTE: Inspect the transfer shaft fluid dam to be sure it is seated evenly into the transmission case.

1. Special Tool(s) : 307-576 Bearing Cup Installer
   General Equipment : Hydraulic Press

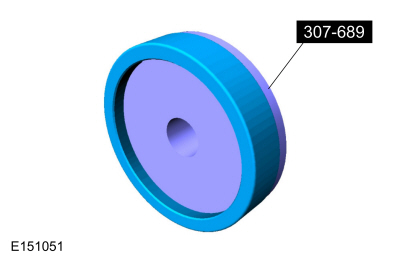

1. Special Tool(s) : 307-689 Installer, Bearing Cup

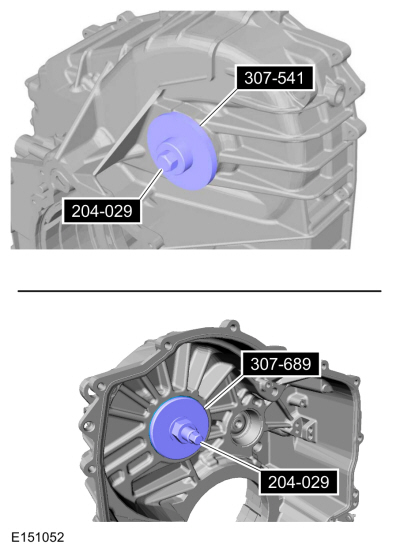

1. Special Tool(s) : 204-029 Drawbar , 307-541 Installer, Transfer Gear Bearing , 307-689 Installer, Bearing Cup

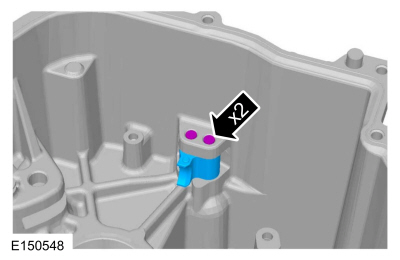

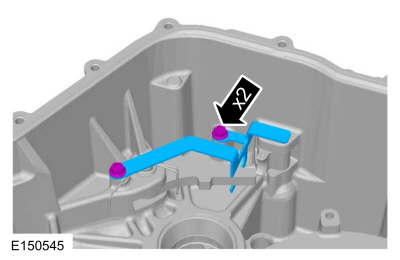

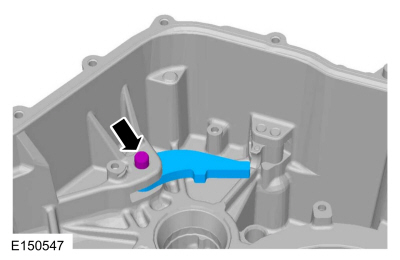

1. Torque : 12 Nm

1. Remove the torque converter housing differential and transfer shaft bearing races to select a new differential or transfer shaft shim.
   Refer to: Torque Converter Housing (307-01A Automatic Transmission - Vehicles With: 6-Speed Automatic Transmission - 6F50, Disassembly and Assembly of Subassemblies).
