307-01A Automatic Transmission - Vehicles With: 6-Speed Automatic Transmission - 6F50 2013 - 2014 MKZ
Removal and Installation Procedure revision date: 07/16/2013

Roll Restrictor RH

Removal

  1. Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).

Installation

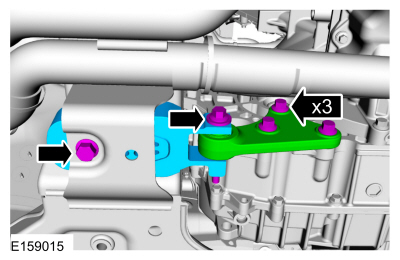

  1. Remove the following items:

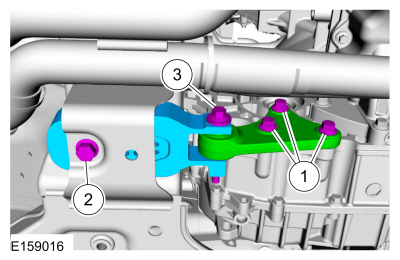

    1. Torque : 125 Nm
    2. Torque : 175 Nm
    3. Torque : 115 Nm
