307-01A Automatic Transmission - Vehicles With: 6-Speed Automatic Transmission - 6F50	2013 - 2014 MKZ
Description and Operation	Procedure revision date: 09/21/2012

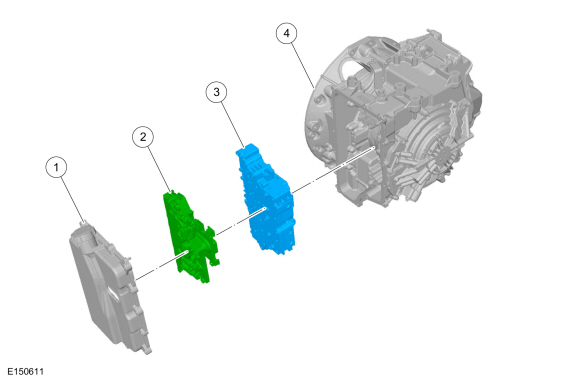

Main Control Valve Body

Item	Description
1	Main control cover assembly
2	Solenoid body
3	Main control valve body
4	Transmission case

Valve Body

Lower Valve Body

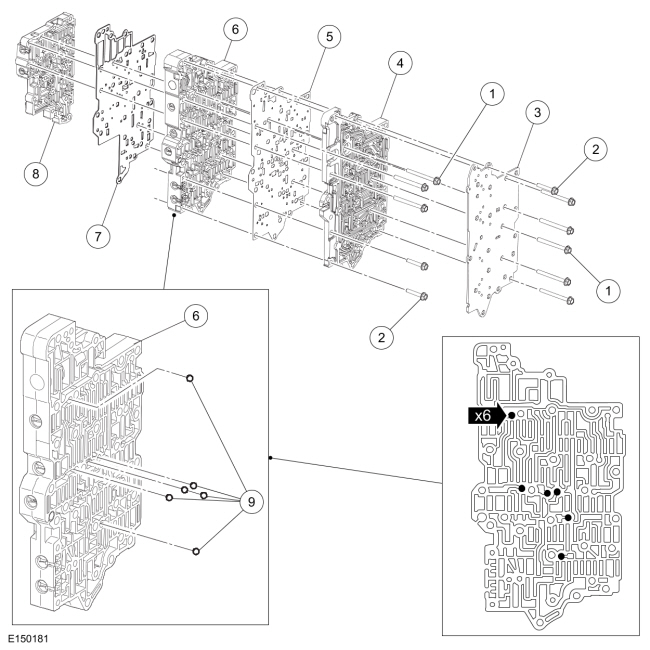

Item	Description
1	Bolts — M6 x 63
2	Bolts — M6 x 35
3	Cover — transfer plate
4	Case-to-valve body transfer plate
5	Separator plate — valve body-to-transfer plate
6	Main control valve body
7	Separator plate — main control valve body-to-lower valve body
8	Lower valve body assembly

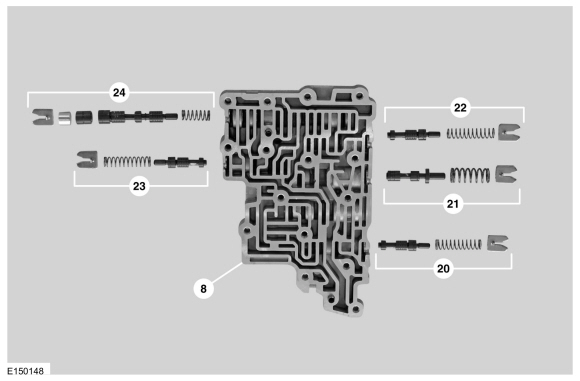

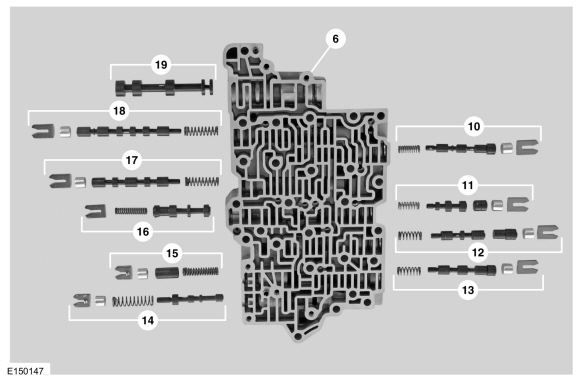

9	Check balls
10	Low/reverse and overdrive clutch regulator valve assembly
11	TCC regulator apply valve assembly
12	Intermediate clutch regulator valve assembly
13	Direct clutch regulator valve assembly
14	Pressure regulator valve assembly
15	Isolator valve assembly
16	TCC control valve assembly
17	Multiplex manual valve assembly
18	Multiplex shift valve assembly
19	Manual valve
20	Direct clutch boost valve assembly
21	Solenoid regulator valve assembly
22	Low/reverse and overdrive clutch boost valve assembly
23	Forward clutch boost valve assembly
24	Forward clutch regulator valve assembly

Main Control

The hydraulic system has a main control assembly. The main control assembly consists of a valve body and a solenoid body. The valve body contains the hydraulic regulator and multiplex shift valves. The solenoid body contains the shift solenoids that control the hydraulic valves. The solenoid body is serviced as an assembly and can not be disassembled. The solenoid body is controlled by the PCM . The PCM has software stored in it specific to the solenoid body currently in the transmission, called the solenoid body strategy. A new solenoid body strategy must be downloaded into the PCM any time a new solenoid body is installed.
