Front Brake Flexible Hose

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

   Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).


1. Refer to: Wheel and Tire (204-04B Wheels and Tires, Removal and Installation).

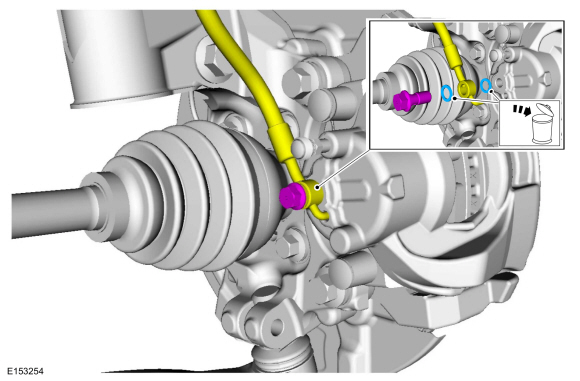

1. Discard the specified component. Follow local disposal regulations.
   Torque : 25 Nm

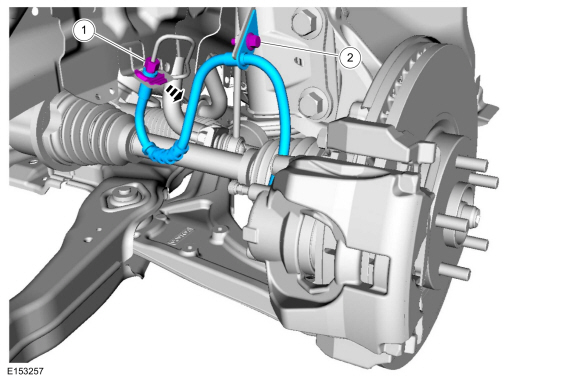

1. Torque :
   1.   18 Nm
   2.   18 Nm

Installation

1. To install, reverse the removal procedure.


1. Bleed the brake caliper.
   Refer to: Component Bleeding (206-00 Brake System - General Information, General Procedures).
