Brake Caliper

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

   Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).


1. Refer to: Wheel and Tire (204-04B Wheels and Tires, Removal and Installation).


1. Discard the specified component. Follow local disposal regulations.

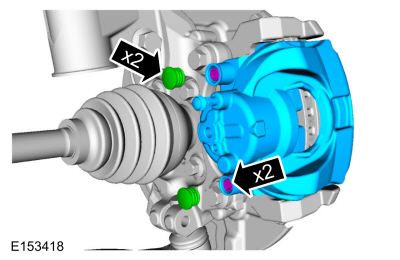

   Torque : 25 Nm

1. Torque : 30 Nm

Installation

1. NOTICE: Make sure that the brake hose is not twisted when installing the brake caliper or damage to the brake flexible hose may occur.

   To install, reverse the removal procedure.


1. Bleed the brake caliper.
   Refer to: Component Bleeding (206-00 Brake System - General Information, General Procedures).
