Accessory Drive Belt

Removal

WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

NOTE: Removal steps in this procedure may contain installation details.

1. Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).


1. Refer to: Air Conditioning (A/C) Compressor Belt (303-05B Accessory Drive - 2.0L EcoBoost (184kW/250PS) - MI4, Removal and Installation).

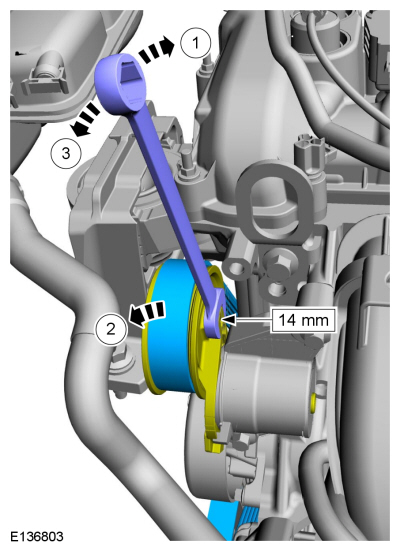

1. WARNING: Take extra care when handling the compressed spring.

Installation

1. To install, reverse the removal procedure.
   Refer to: Accessory Drive - Component Location (303-05B Accessory Drive - 2.0L EcoBoost (184kW/250PS) - MI4, Description and Operation).
