303-12A Intake Air Distribution and Filtering - 3.7L Duratec (227kW/301PS) 2013 - 2014 MKZ
Removal and Installation Procedure revision date: 09/13/2012

Air Cleaner Outlet Pipe

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

    Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).

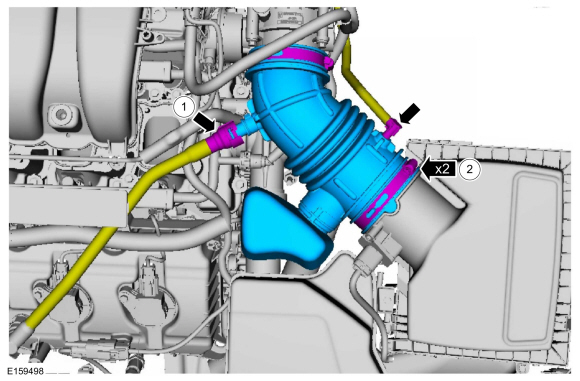

    1. Refer to: Quick Release Coupling (310-00A Fuel System - General Information - 2.0L EcoBoost (184kW/250PS) - MI4, General Procedures).
    1. Torque : 5 Nm

Installation

  1. To install, reverse the removal procedure.
