307-05A Automatic Transmission External Controls - Vehicles With: 6-Speed Automatic Transmission - 6F50 2013 - 2014 MKZ
Removal and Installation Procedure revision date: 09/24/2012

Downshift Paddle Switch

Removal

WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

NOTE: Removal steps in this procedure may contain installation details.

  1. Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).
  1. Refer to: Driver Airbag (501-20B Supplemental Restraint System, Removal and Installation).

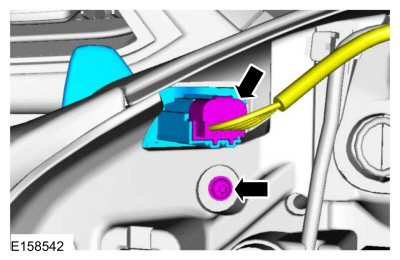

  1. Torque : 5 Nm

Installation

  1. To install, reverse the removal procedure.
